Introduction
Leak testing is very important in many industries. It helps to keep products safe, reliable, and working well. This is done in things like medical devices, car parts, machines, and tanks that hold pressure. If you find leaks, even very small ones, you can stop things from breaking. It also helps to make better quality products and be sure that everything meets industry rules.
The Automated Air Pressure Leak Tester (APLT 6K) from PMI is a top-level, easy-to-use leak testing system. It makes and holds the right pressure to find air leaks and gives test results you can count on every time. The APLT 6K has smart microprocessor controls, detailed pressure checks, and can do tests on its own. This APLT 6K is a good option for makers, labs, and teams that check for good quality in their products.
What is an Automated Air Pressure Leak Tester?
An Automated Air Pressure Leak Tester is a tool that checks if sealed parts, boxes, or other things are in good shape. It does this by adding air pressure and watching if there is any drop in pressure as time goes by.
The PMI APLT 6K makes the whole testing process easy. The machine handles everything after you start it up, so you can set up:
- Target pressure levels
- Pressurization rates
- Hold times
- Test durations
- Rules for passing or failing the test
The system does the test by itself and gives very good numbers. It needs little help from a person.
Why Leak Testing is Important
Leak testing is a key part of making sure the product is good. It also keeps people safe and helps the product meet rules set by the law.
Product Reliability
Leak-free products work the same way most of the time. They keep doing what they are made to do for the whole time you use them.
Safety Assurance
Leaks in pressurized systems can lead to:
- Equipment failure
- Product recalls
- Safety hazards
- Environmental risks
Regulatory Compliance
Many industries need leak testing. This helps them follow the rules from around the world and meet quality standards.
Cost Reduction
Finding leaks when making a product helps stop big costs. It can save money from warranty claims and repairs. It also helps avoid losing time in production.
Key Features of the Automated Air Pressure Leak Tester
Fully Automated Testing
The APLT 6K has a built-in microprocessor. This microprocessor runs the whole testing process for you. Everything is done in an automatic way.
Benefits include:
- Tests run the same way each time
- Needs people to help less
- Results are more the same each time
- Work gets done faster
High Pressure Capability
The system makes and checks air pressure up to:
35 MPa (5,076 psi)
This wide pressure range lets you test products made for tough places where they need to work.
Exceptional Measurement Accuracy
To find leaks the right way, you need to check the pressure carefully.
Pressure Transducer Accuracy
Up to ±0.1% Full Scale
System Control Accuracy
±0.2% Full Scale
These specifications help give you leak test results that you can trust.
High-Resolution Pressure Monitoring
The advanced encoder and control system provide:
System Resolution: 1/65,536
This lets you find very small changes in pressure. These small changes may show that there is a leak.
Flexible Pressurization Rates
The system can change pressure in steps that you can set. This helps the system work with different kinds of products and testing steps.
Pressurization Rate
- 0.7 kPa per second
- Up to 1,380 kPa per second
- About 0.1 PSI per second to 200 PSI per second
This flexibility lets you get the best results for light parts and for strong industrial products.
Working Principle of the APLT 6K
The leak testing process goes through a few important steps:
1. Product Loading
The test sample is linked to the leak testing system.
2. Pressurization
The system puts a set level of air pressure on the product.
3. Stabilization
The pressure is kept steady to get rid of short-term changes.
4. Leak Detection
The system always checks how the pressure moves. It finds out if there is any drop in pressure.
5. Result Analysis
The software looks at set rules to see if the product passes or fails.
6. Automated Reporting
Test results can be kept, looked at, and written down for quality records.

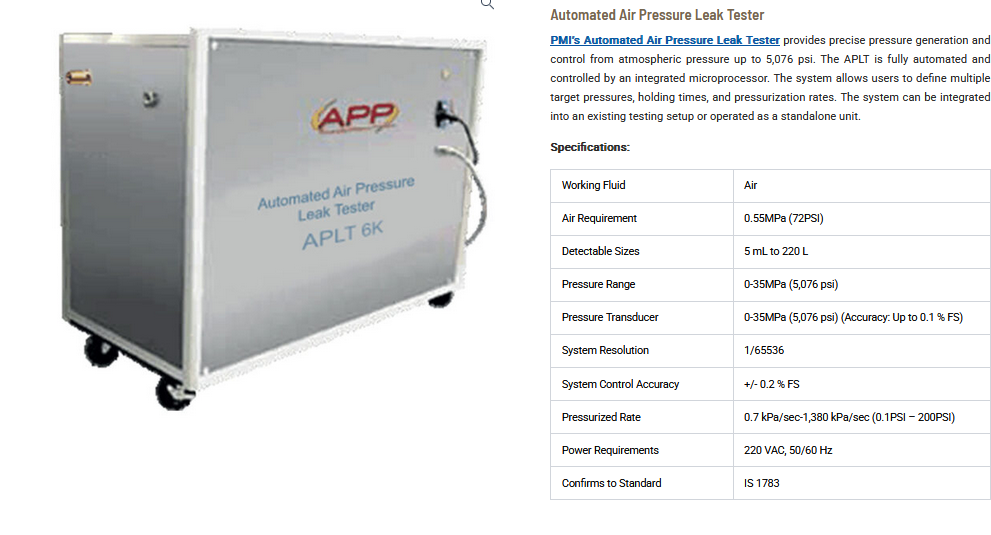

Technical Specifications
| Specification | Details |
|---|---|
| Working Fluid | Air |
| Air Requirement | 0.55 MPa (72 PSI) |
| Detectable Sizes | 5 mL to 220 L |
| Pressure Range | 0–35 MPa (5,076 psi) |
| Pressure Transducer Accuracy | Up to ±0.1% Full Scale |
| System Resolution | 1/65,536 |
| System Control Accuracy | ±0.2% Full Scale |
| Pressurization Rate | 0.7 kPa/sec – 1,380 kPa/sec |
| Power Requirements | 220 VAC, 50/60 Hz |
| Standard Compliance | IS 1783 |
Applications of Automated Leak Testing
Medical Device Manufacturing
Leak testing ensures the integrity of:
- Medical tubing
- Catheters
- Fluid containers
- Diagnostic equipment
Automotive Industry
Manufacturers use leak testing for:
- Fuel systems
- Brake parts
- Air conditioning units
- Fluid power assemblies
Industrial Equipment
The APLT 6K can evaluate:
- Pressure vessels
- Valves
- Pumps
- Piping systems
- Industrial containers
Consumer Products
Leak testing supports quality assurance for:
- Bottles
- Packaging
- Storage containers
- Household appliances
Aerospace and Defense
High-pressure leak testing is essential for:
- Systems that use fluid power
- Systems that use fuel
- Parts under high pressure
- Parts important for safety
Advantages of Automated Leak Testing
Improved Product Quality
Automated testing finds problems in the product before it gets to customers.
Faster Production Cycles
Fast automated testing helps boost how many products companies can make.
Reduced Human Error
Automation helps get rid of the differences you often see with manual checking methods.
Enhanced Traceability
Digital data collection gives complete test records. It also helps keep clear audit trails.
Cost Savings
Finding problems early helps cut down on waste. It also lowers the need for fixing things and makes warranty claims go down.
Compliance with Industry Standards
The APLT 6K conforms to:
IS 1783
Meeting known standards helps manufacturers keep their product quality high and follow the rules they need to.
Why Choose PMI’s Automated Air Pressure Leak Tester?
PMI is known around the world to give advanced testing systems to check quality. They also help with testing how porous something is, checking membranes, and working in industrial research.
The APLT 6K offers:
- The machine works all by itself.
- It can test things under a lot of force.
- It can measure things very well.
- It finds even small leaks.
- You can change the testing settings.
- It works well and lasts a long time.
- You can set it up in a factory with no trouble.
These things make it a good choice for the lab and also for use in making things.
Conclusion
The Automated Air Pressure Leak Tester (APLT 6K) gives manufacturers and researchers a simple way to check for leaks and test pressure. It can test up to 5,076 psi. A smart microprocessor helps you watch the pressure closely. The system meets industry standards. It gives good results for many uses.
Whether you use APLT 6K for product development, quality checks, rules compliance, or production testing, it helps companies to make products more reliable. It also makes things safer. APLT 6K lets you keep the best quality all the time.
