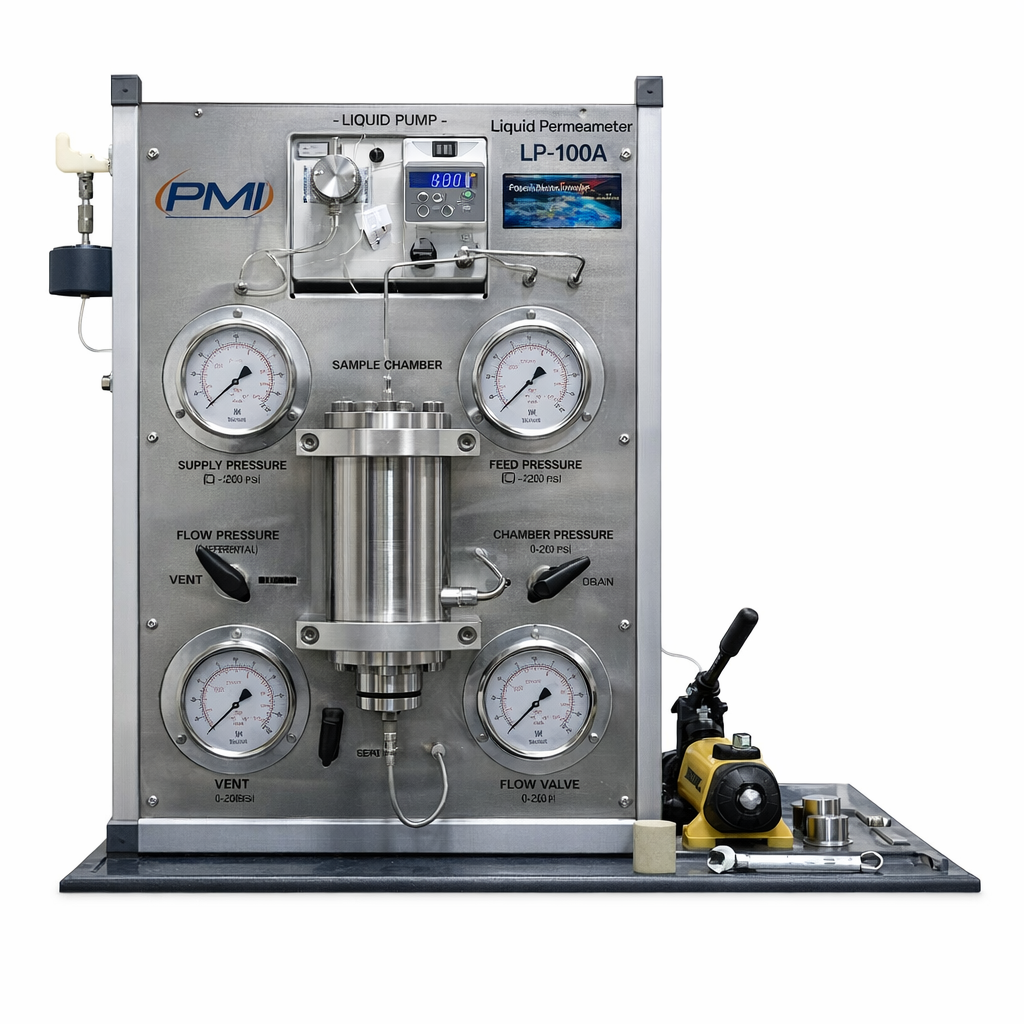

Educational Liquid Permeameter (ELP-100A)

Educational Liquid Permeameter (ELP-100A)

The PMI Liquid Permeameter measures the steady-state permeability of plug-sized rock samples by flowing a single-phase liquid through the core sample. During testing, a core plug is placed in the core holder and the confining pressure is applied. The liquid is injected into the saturated core sample at a constant flow rate, and the stabilized upstream pressure is recorded. The outlet pressure is maintained at atmospheric pressure. Differential pressure, flow rate, and the viscosity of the liquid are incorporated into Darcy’s law to calculate the liquid permeability of the rock sample.

Specification:

Permeability range 0.1 mD to 5 Darcys
Confining pressure Up to 10,000 psi
Core diameter 1 or 1.5 inches
Core length 1 to 4 inches
Temperature Ambient
Max pore pressure 5,000 psi
Maximum Flow Rate 10 mL/min
Power 110/220 VAC, 50/60 Hz
Size 26 in (W) × 24 in (D) × 26 in (H)



Categories: ,

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • Provides fast and accurate measurement of liquid permeability.
  • Easy loading and unloading of the core sample.
