- Fully automated computer-controlled system.
- Simple sample setup.
- User-friendly software interface.
- Automated data acquisition system.
- PMI reporting software generates test reports and exports data to Microsoft Excel.

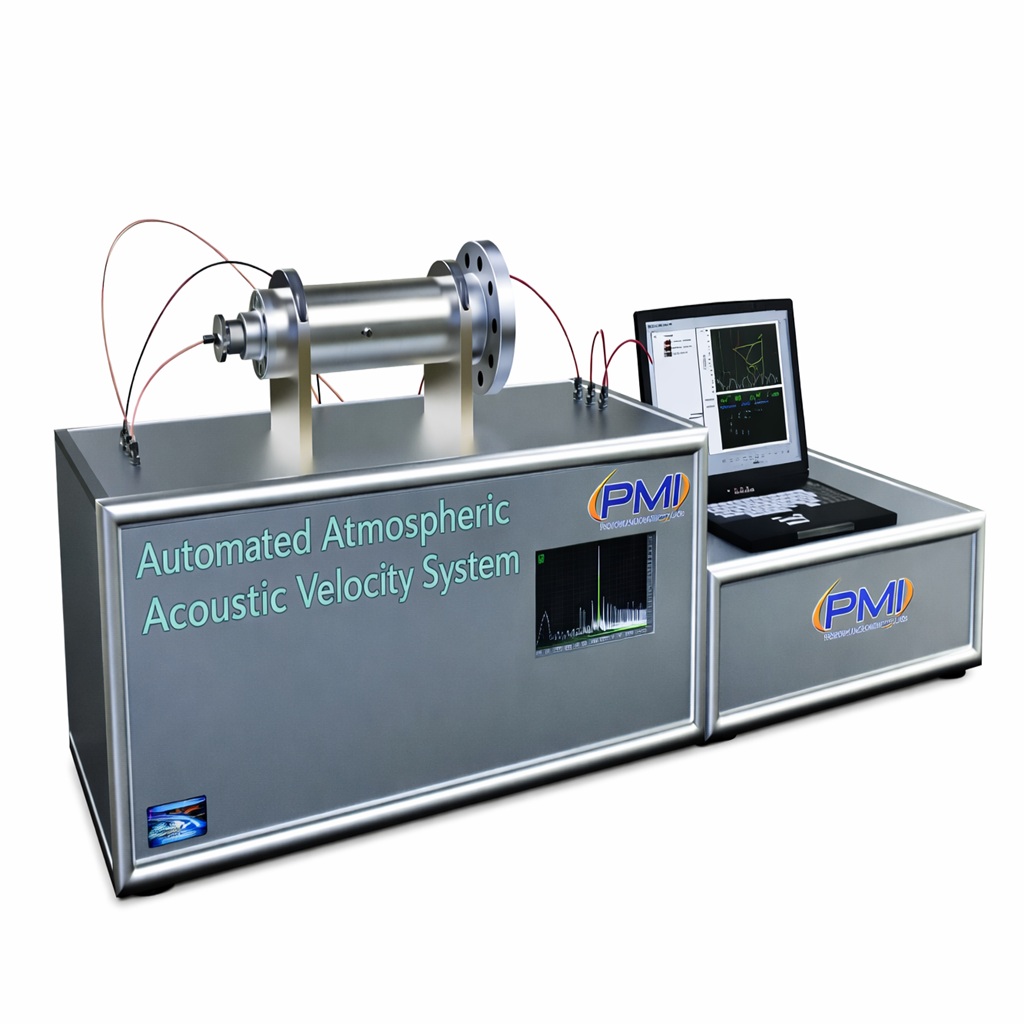

Automated Atmospheric Acoustic Velocity System
When a wave with known properties passes through a new medium, its properties change after exiting the medium. By measuring these changes, the acoustic velocity of the medium can be determined along with dynamic elastic constants such as Young’s modulus, bulk modulus, shear modulus, Poisson’s ratio, and other dynamic moduli.
Specifications:
| Operating pressure | Atmospheric (overburden pressure available upon request) |
| Operating temperature | Up to 50 °C |
| Core sample diameter | 1 inch and 1.5 inches (adjustable upon request) |
| Core sample length | Up to 3 inches (adjustable upon request) |
| Center Frequency | 500 kHz |
| Waves | Compressional (P-wave) and shear waves (S1 and S2) |
| Wetted Material | 316 Stainless Steel |
| Electrical Requirements | 220–240 VAC, 50/60 Hz |
