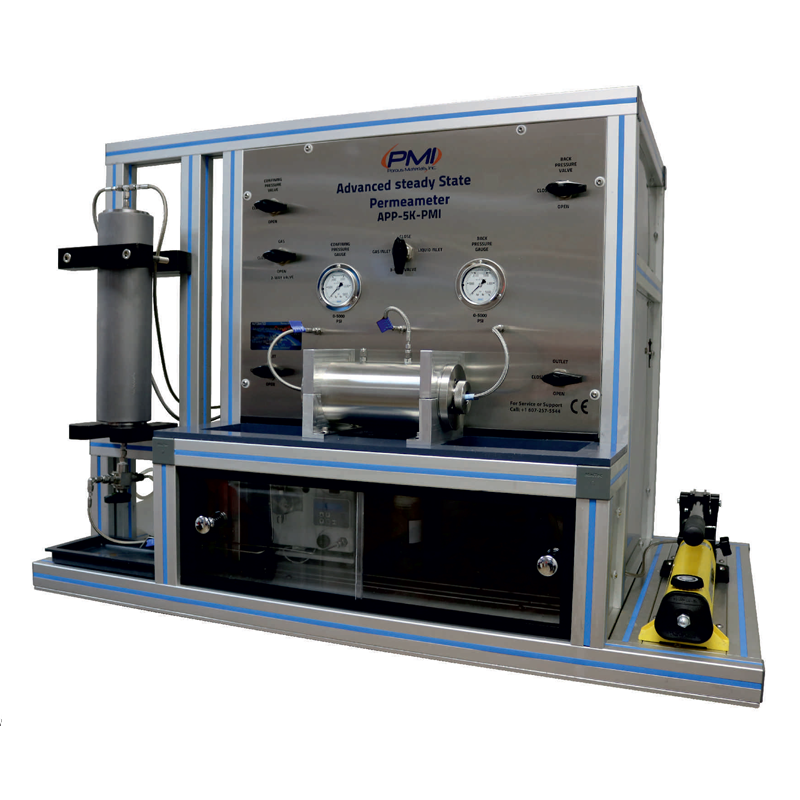

Steady State Liquid Permeameter

Steady State Liquid Permeameter

The PMI Steady State Liquid Permeameter is used to measure the permeability of samples such as oil-well cores, tight gas sandstones, and other low‑permeability rocks. Liquids such as brine, oil, and other compatible fluids are used as the permeating medium. The instrument measures the pressure drop and flow rate through the sample during the test. A rock sample is placed in the sample chamber where confining pressure is applied. While the sample is under confining stress, permeability-related properties are measured.

The PMI Steady State Liquid Permeameter determines permeability characteristics of core samples under controlled confining pressure. The PMI Automated Liquid Permeability System is specially designed for testing rock core samples. Core samples are placed in a Hassler‑type core holder which compresses the sample to the desired confining pressure. Tests are typically conducted at ambient temperature. Both non‑aqueous fluids (oil, kerosene) and aqueous fluids (brine or equivalent) can be used. The instrument measures the flow rate of a known liquid to calculate permeability. The system is fully automated. Test execution, data acquisition, data storage, and data management are handled by PMI software. Operator involvement is minimal, and the instrument is robust and requires minimal maintenance.

Specifications:

Permeability Range Up to 5 Darcys
Confining Pressure Up to 500 psi (or higher, depending on configuration)
Liquid Flow Range 0.01–10 cc/min or wider
Flow (pore) Pressure Range Up to 100 psi
Differential Pressure Up to 250 psi or higher
Standard Core Plug Diameter 1 inch
Temperature Ambient
Core Plug Length Up to 3 inches
Power 110/220 VAC, 50/60 Hz
Weight 110 Kg



Category:

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • User‑friendly Windows‑based software controls the instrument, performs measurements, collects data, and generates reports; manual control is also available.
  • PC system for data acquisition includes an Intel Core i5 processor, 2 GB RAM, 300 GB HDD, 17″ monitor, latest operating system, and MS Office.
  • Real‑time graphical display shows test status and results during operation.
  • Computer processing and data storage.
  • Non-destructive testing.
  • All wetted parts are made of 316 stainless steel for durability when working with brine, water, refined oil, or dead oil.
