Automated Battery Burst Pressure Tester

Automated Battery Burst Pressure Tester

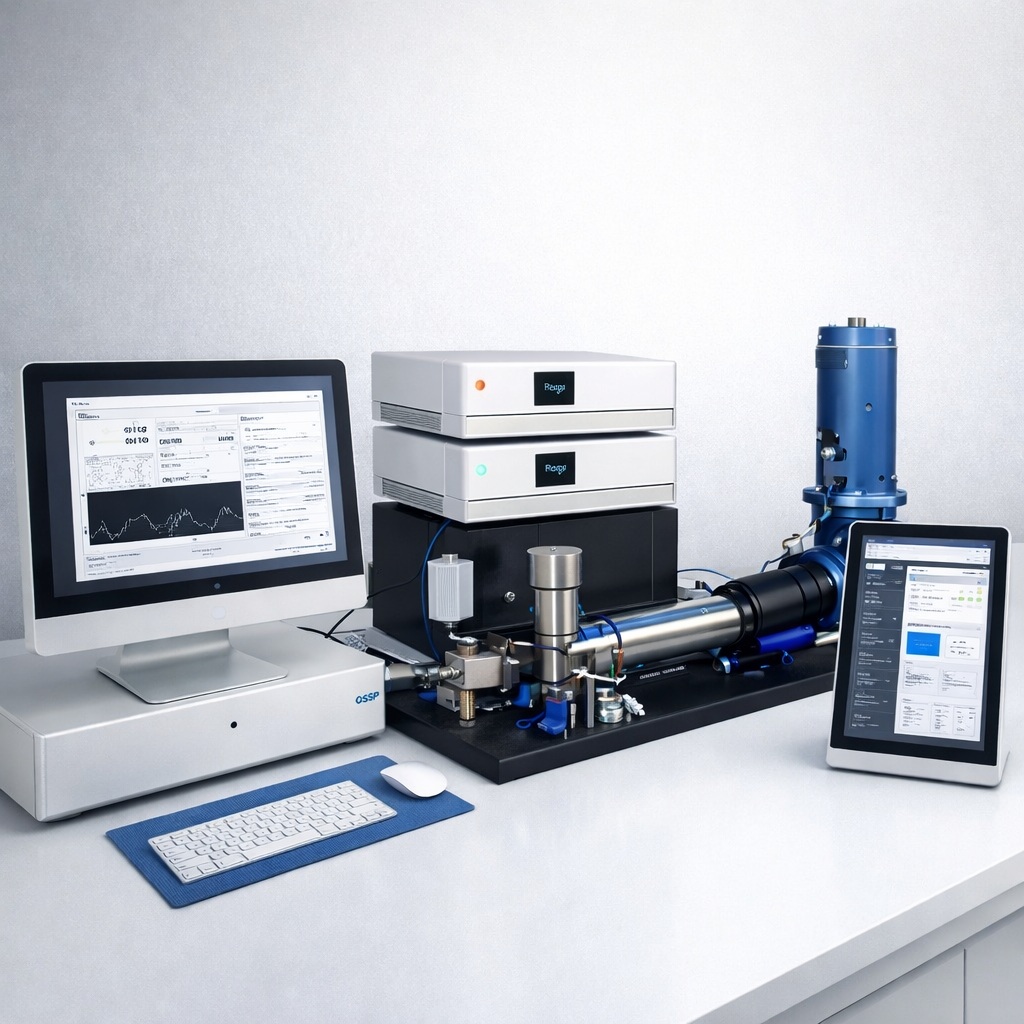

The APP Automated Battery Burst Pressure Test System (ABBPTS) is designed to accurately determine the pressure at which battery casings fail. The system supports both pneumatic and hydraulic pressurization methods. The pneumatic system operates from atmospheric pressure up to 5,000 psi, while the hydraulic system operates up to 60,000 psi. The instrument can perform vent release and crimp burst tests, enabling precise identification of failure pressure. This system is widely used for battery safety testing, quality control, and research applications.

Specifications (Pneumatic):

Working Fluid N/A
Air Supply Requirement 80 psi compressed air
Pressure Range 0 to 5,000 psi
Pressure Transducer Range: 0 to 5,000 psi

Accuracy: Up to ±0.01% of full scale
System Resolution 1 part in 20,000 (optional 1 part in 65,536)
System Control Accuracy ±0.02% of full scale
Pressurization Rate 0.1 to 200 psi/sec
Maximum Hold Time Unlimited
Power Requirements 110 VAC, 60 Hz (220 VAC, 50 Hz optional)
Dimensions 51 in (H) x 28.5 in (W) x 26 in (D)
Weight 150 lbs



Specifications (Hydraulic):

Working Fluid Water, Oil, or Alcohol
Air Requirement N/A
Pressure Range 0 to 60,000 psi
Pressure Transducer Range: 0 to 60,000 psi

Accuracy: Up to ±0.01% of full scale
System Resolution 1 part in 20,000 (optional 1 part in 65,536)
System Control Accuracy ±0.02% of full scale
Pressurization Rate 0.1 to 200 psi/sec
Maximum Hold Time Unlimited
Power Requirements 110 VAC, 60 Hz (220 VAC, 50 Hz optional)
Dimensions 51 in (H) x 28.5 in (W) x 26 in (D)
Weight 300 lbs



Category:

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • High-precision pressure transducer for accurate monitoring and feedback.
  • User-configurable target pressure, hold time, and pressurization rate.
  • Test can be performed under elevated temperature to simulate actual operating conditions (optional).
  • Multi-level, fail-safe system providers over-pressurization protection.
  • Fully automated operation with Windows-based control and data acquisition software.
  • Compatible with Windows ’98 and higher with results throughout operation.
  • Real-time graphical display of pressure and test data.
  • Multiple pressure outlet ports for flexible testing configurations.
  • Multiple pressure outlet ports available.
  • Automatic pressure generator refill for high volume situations.
  • Multiple pressure generator systems for continuous and multi-axis pressurization (optional).
  • Customized report formats available.
  • Minimal maintenance required.
