- Values are recorded and reported manually or through optional PMI software.
- Simple and quick sample setup.
- The core holder is designed to minimize operator error during the sample loading process.
- Compact and robust design with minimal maintenance requirements.
- Compatible with testing using various fluids.
- Constructed from corrosion-resistant materials.

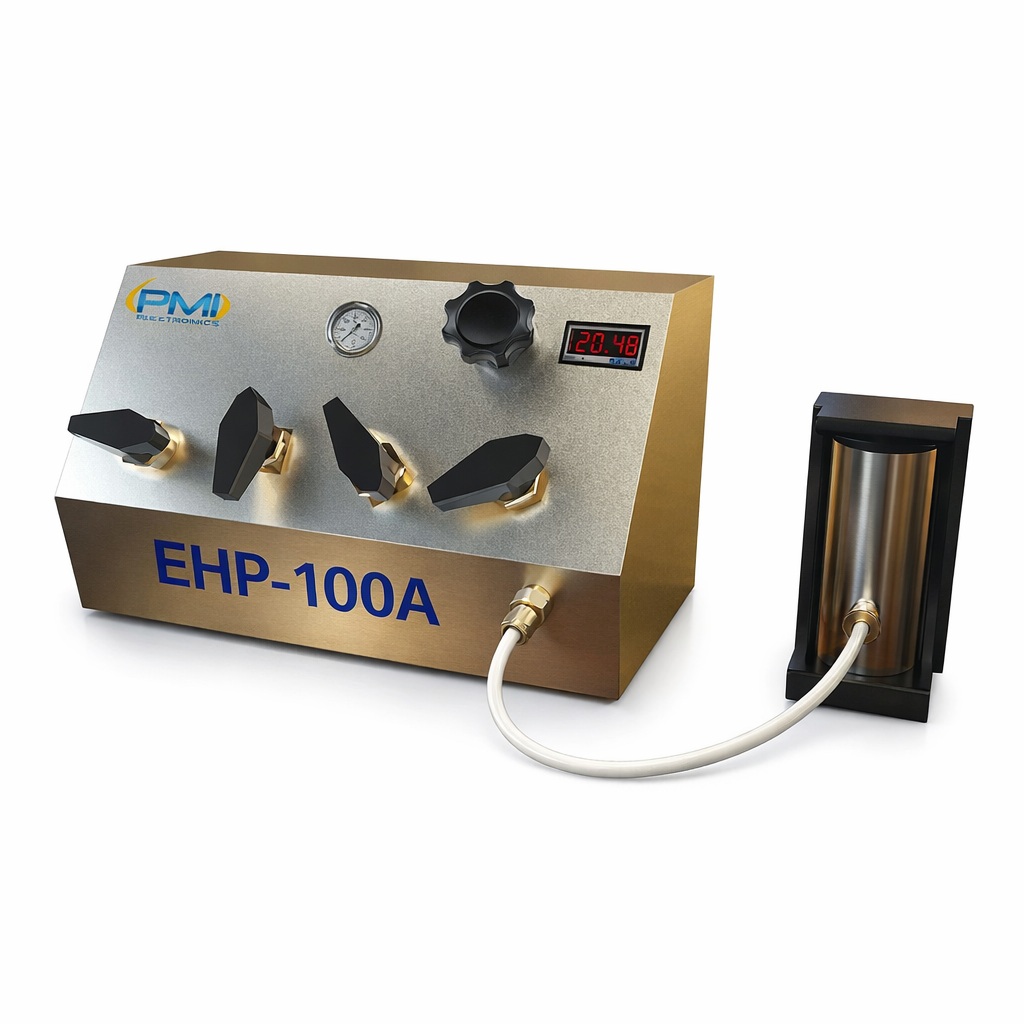

EHP-100A
Specifications:
| Porosity measurement range | Up to 60% |
| Porosity measurement at | 200 psi |
| Sample type | Rock core samples |
| Core size | 1 to 1.5 inches diameter, up to 3 inches length |
| Pressure sensors accuracy | ±0.1% of full scale |
| Thermometer accuracy | ±0.1 °C |
| Power | 110/220 VAC, 50/60 Hz (other options available) |
