- High-precision pressure transducer for accurate pressure monitoring and feedback.
- User-programmable pressure setpoints, hold times, dwell times, and pressurization rates.
- Multi-level, fail-safe system provides over-pressurization protection.
- Fully automated operation with Windows-based control and data acquisition software.
- Compatible with Windows XP and higher.
- Real-time graphical display of system pressure and performance.
- Multiple pressure output ports for flexible system integration.
- Automatic pressure generator refill for high volume situations.
- Customized report formats available.
- Minimal maintenance required.

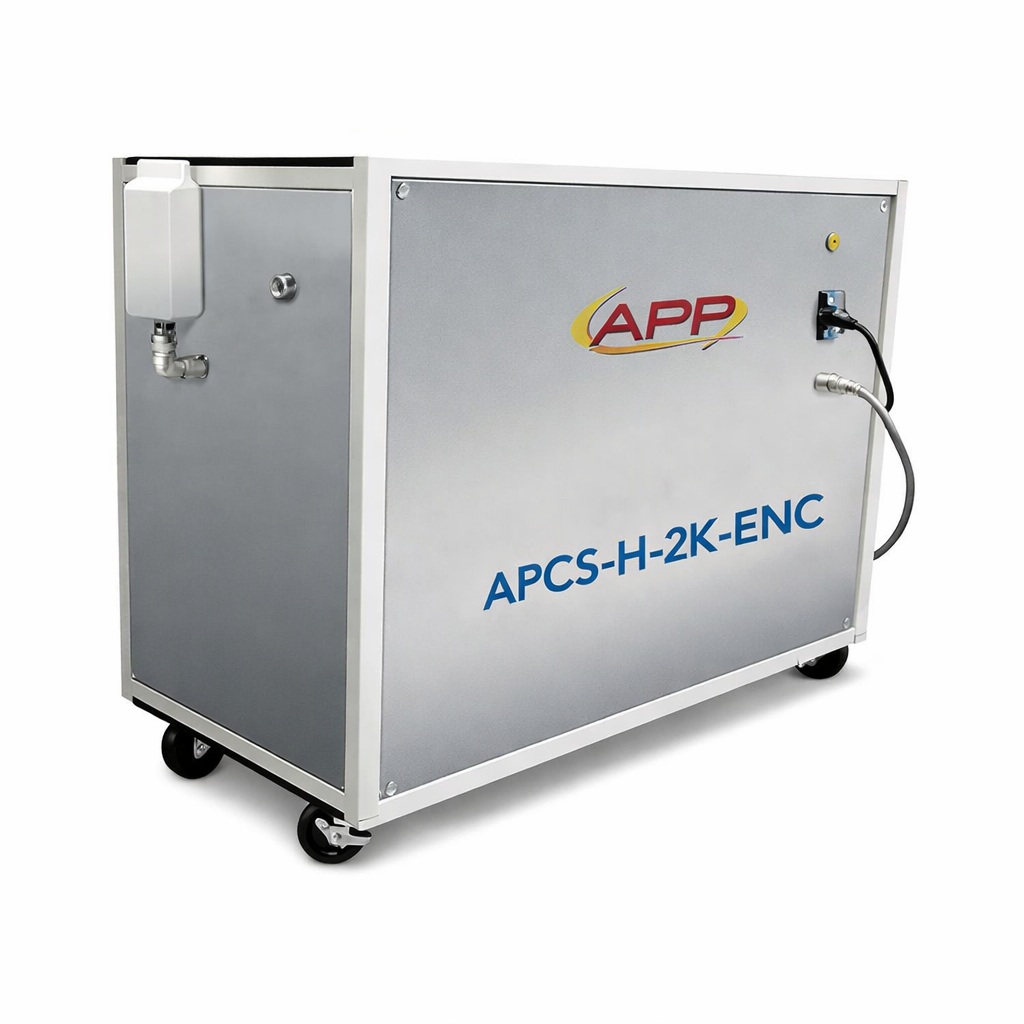

Automated Hydraulic Pressure Control System
The PMI Automated Hydraulic Pressure Control System (APCS) with encoder is designed to provide precise hydraulic pressure generation and control from atmospheric pressure up to 2,000 psi. The system is fully automated and microprocessor-controlled, ensuring accurate and repeatable pressure regulation. Users can program multiple pressure setpoints, hold times, dwell times, and pressurization rates. The APCS can operate as a standalone unit or be integrated into larger automated testing or manufacturing systems.
Specifications:
| Working Fluid: | Water (H₂O), oil, or alcohol |
| Pressure Range: | Atmospheric to 2,000 psi |
| Pressure Transducer: | Range: 0 to 2,000 psi
Accuracy: Up to ±0.1% of full scale |
| System Resolution: | 1 part in 65,536 |
| System Control Accuracy: | ±0.2% of full scale |
| Power Requirements: | 110 VAC, 60 Hz (220 VAC, 50 Hz optional) |
| Dimensions: | 51 in (H) × 28.5 in (W) × 26 in (D) |
| Weight: | 300 lbs |
