- User-defined number of iterations per sample for improved measurement accuracy.
- Windows-based software controls the instrument, performs measurements, collects data, and generates reports; manual operation is also possible.
- Compatible with Windows XP or later operating systems.
- Real-time graphical display shows test status and results during operation.
- Non-destructive testing.
- Typical test duration: approximately 30 minutes (based on 10 iterations).
- Compatible with a wide range of sample types and sizes.
- Multiple sample chamber configurations available.
- Minimal maintenance required.

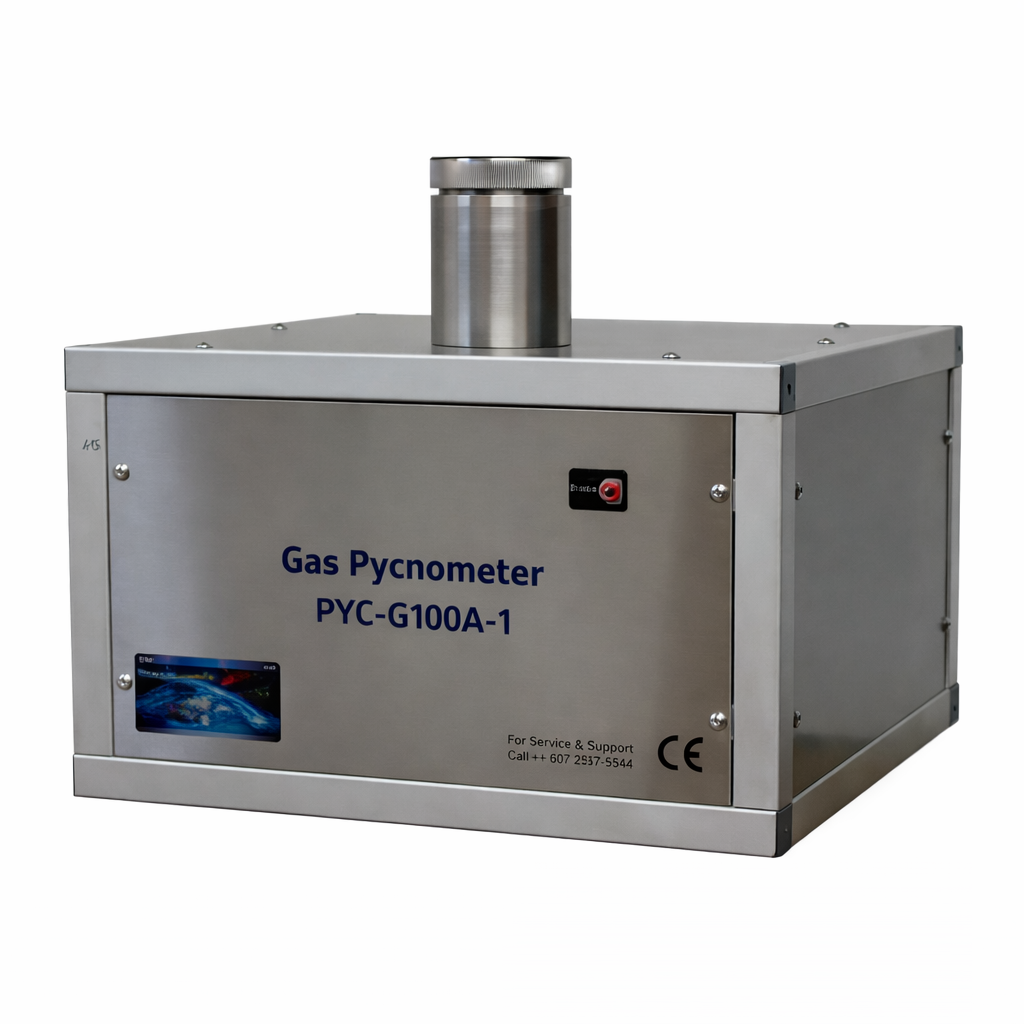

Gas Pycnometer and Helium Pycnometers
PMI’s Gas Pycnometer provides a reliable measurement of the absolute density of solid materials. The Gas Pycnometer performs a fully automated, non-destructive test that allows the user to control the number of test iterations, thereby adjusting test duration and measurement accuracy.
Specification:
| Sample Size | 2.5 cm (H) × 3.5 cm (W) |
| Pressure Range | Vacuum to 2,000 Torr (approximately 40 psi) |
| Pressurizing Gas | Clean, dry compressed air or other non-flammable, non-corrosive gases |
| Pressure Transducer Range | 0 to 12,000 Torr |
| Power Requirements | 110/220 VAC, 50/60 Hz (other options available) |
| Dimensions | 21 in (H) × 11 in (W) × 15 in (D) |
| Weight | 35 lbs |
