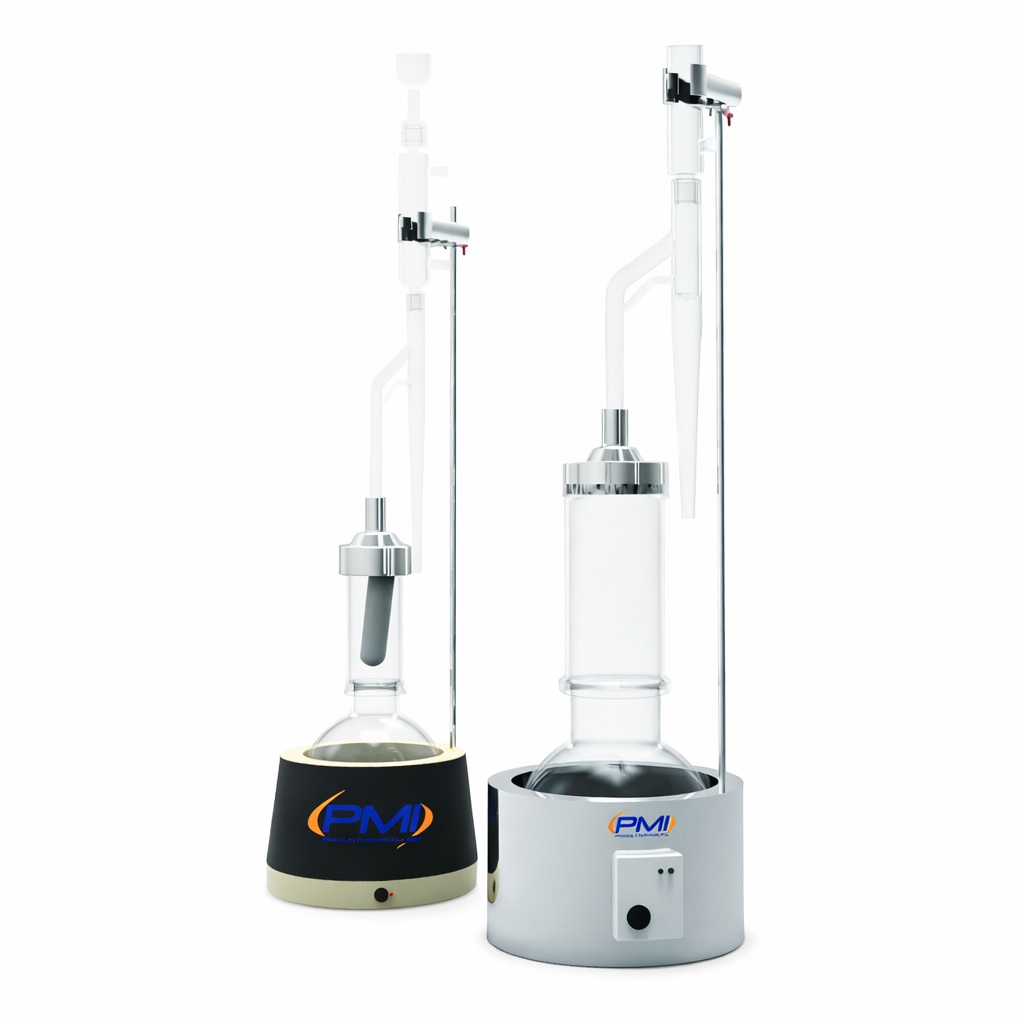

Dean Stark Setup

PMI’s Dean-Stark Extractor Setup is used to determine the fluid saturation of core samples.

Specifications:

Core Plug Diameter 1inch and 1.5 inches
Core Plug Length Up to 4 inches
Extractor Capacity 250 cc
Boiling Flask 500 cc (borosilicate glass)
Receiving Tube 10 mL capacity with 0.1 mL graduations
Maximum Heating Temperature 150 °C
Water Cooling System 0.5 to 3 L/min at approximately 18 °C
Power Supply: 110/220 ±10 VAC, 50 ±1 Hz



Category:

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • Distillation and extraction glassware unit.
  • Heating mantle with thermostatic temperature controller
  • Boiling flask integrated with extractor assembly
  • Sample support screen for holding the core sample.
  • Volumetrically graduated 10 mL water receiving tube.
  • Condenser with desiccant drying tube.
  • Flexible tubing used to connect the condenser to the water cooling unit
  • All components mounted on a stable mounting rack.
