GISORP-10A

GISORP-10A

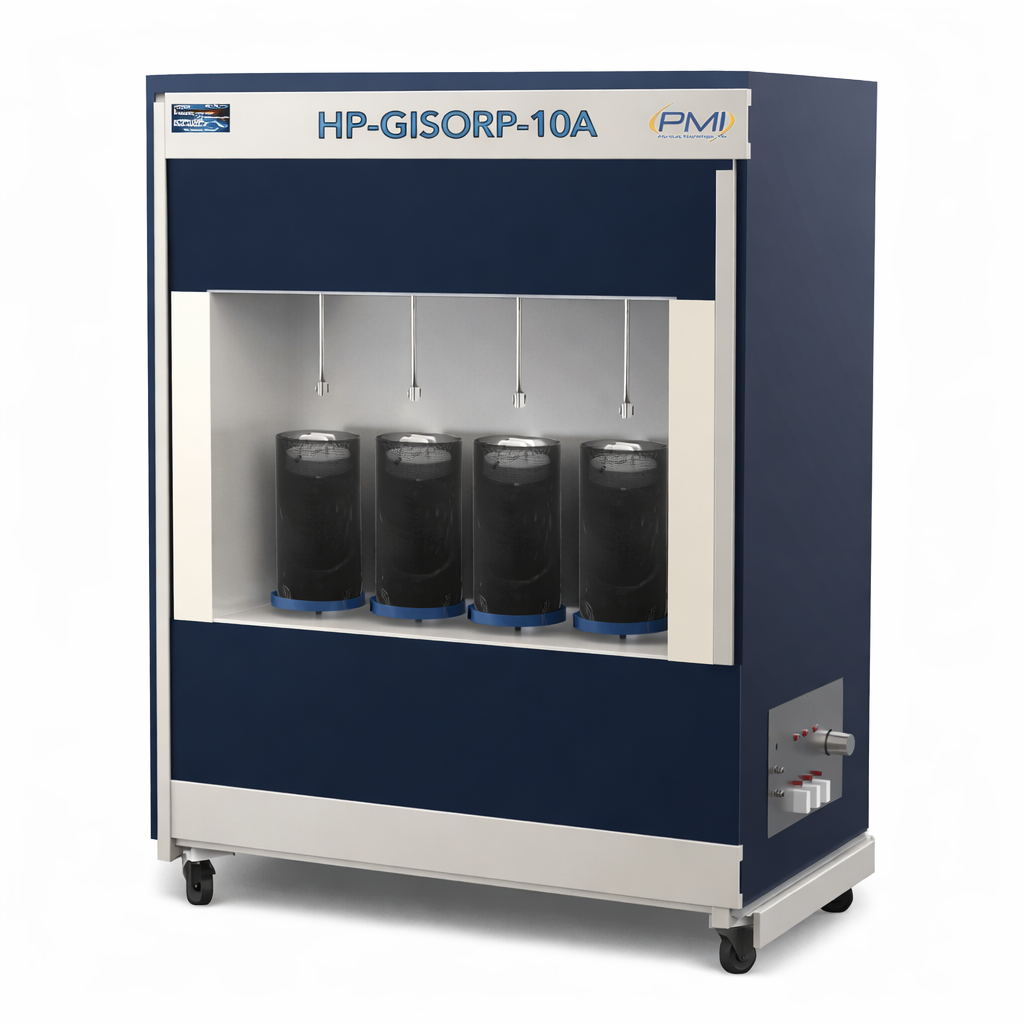

PMI’s Gas Adsorption Isotherm System, model GISORP‑10KA, is a fully automated high‑pressure adsorption isotherm system designed to measure gas adsorption isotherms of shale and coal samples. The GISORP‑10KA is configured with four sample test chambers. It determines the maximum volume that a sample can store under equilibrium conditions at a given pressure and temperature.

The system includes digitally controlled gas injection, adsorption cells, a gas booster, pressure measurement, and a data acquisition system.

Advanced fully computer‑controlled system that allows operation in both automatic and manual modes, providing precise monitoring and data acquisition.

Specifications:

Sample cell Volume 100 ml
Reference Cell Volume 200 ml
Pressure Transducer (For manifold & each Sample Chamber) 10,000 psi
Resolution 1 part in 60,000
Accuracy ± 0.15% of full scale
Analysis Gases Methane and other non‑corrosive gases
Power Supply 110/220 VAC, 50/60 Hz
Test temperature Up to 200 °C
In situ outgassing No need for extra outgassing stations
Material Manufactured using corrosion‑resistant materials such as high‑grade stainless steel, Hastelloy, Viton, Teflon, and includes a vacuum pump and booster pump.
Category:

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • Advanced fully computer-controlled system that allows the operation for both automatic and manual modes where can provide precise monitoring and data   acquisition
  • Display of full adsorption and desorption isotherms
  • Graph overlays
  • Automated Temperature Control and Automated Pressure Control
  • Dead-end & Through-pores
