- Rapid and accurate determination of pulse decay permeability.
- Confining pressuring up to 10,000 psi.
- PMI software for system control and data acquisition.

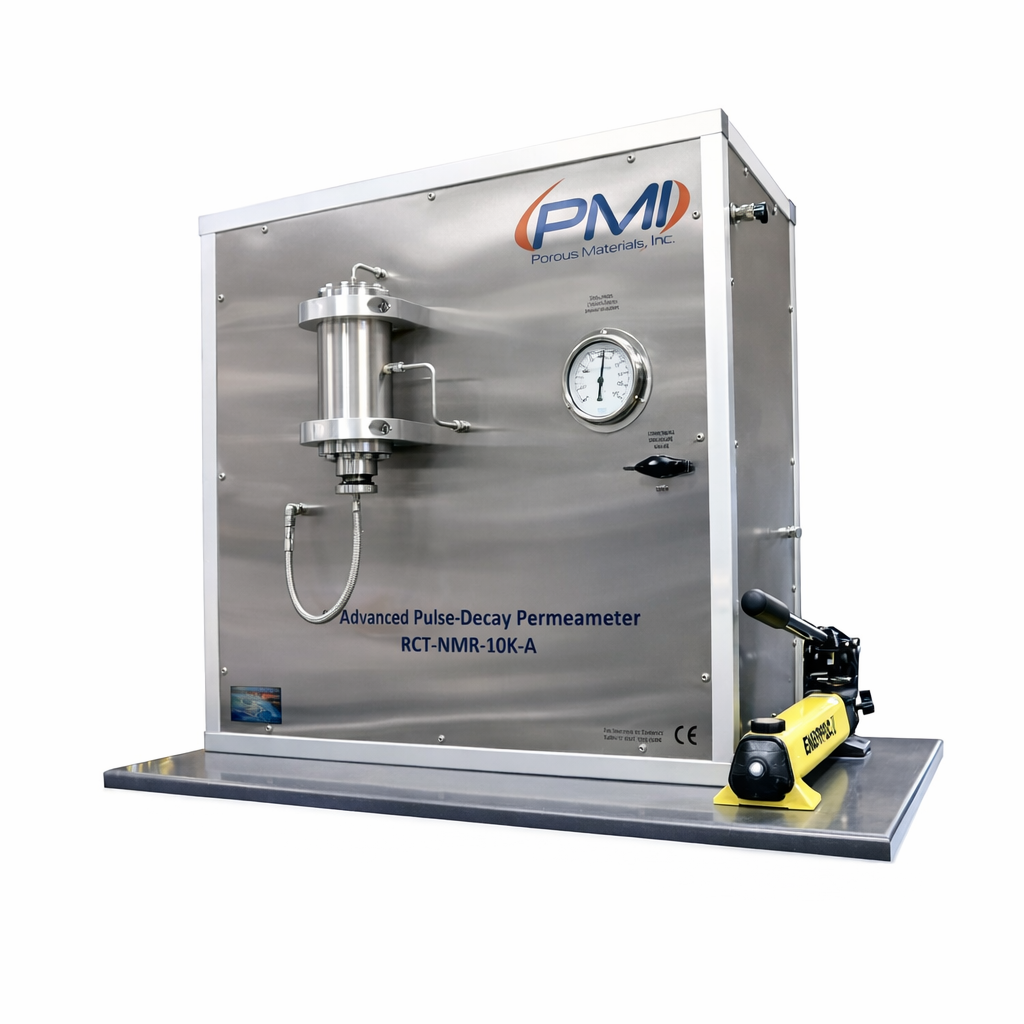

Advanced Pulse Decay Permeameter (APDP-10K)
The PMI Pulse Decay Permeameter is designed to fully automatically measure gas permeability of tight rocks, gas shale, or oil shale samples with ultra‑low permeability. Gas permeability is determined using the pulse decay technique, which allows measurements that are faster and more accurate compared with the conventional steady‑state method.
Specification:
| Permeability range | 1 nD to 0.1 mD |
| Confining pressure | 400 to 10,000 psi |
| Core diameter | 1 inch or 1.5 inches |
| Core length | 1.5 to 3 inches |
| Temperature | Ambient |
| Max pore pressure | 2,000 psi |
| Pressure accuracy | ± 0.1% of full scale |
| Air | 80 psi to 120 psi |
| Power | 110/220 VAC, 50/60 Hz |
| Size | 44 in (H) × 27 in (W) × 33 in (D) |
| Power | 110/220 VAC, 50/60 Hz |
| Size | 70 in (H) × 35 in (W) × 31 in (D) |
