PYC-100A

PYC-100A

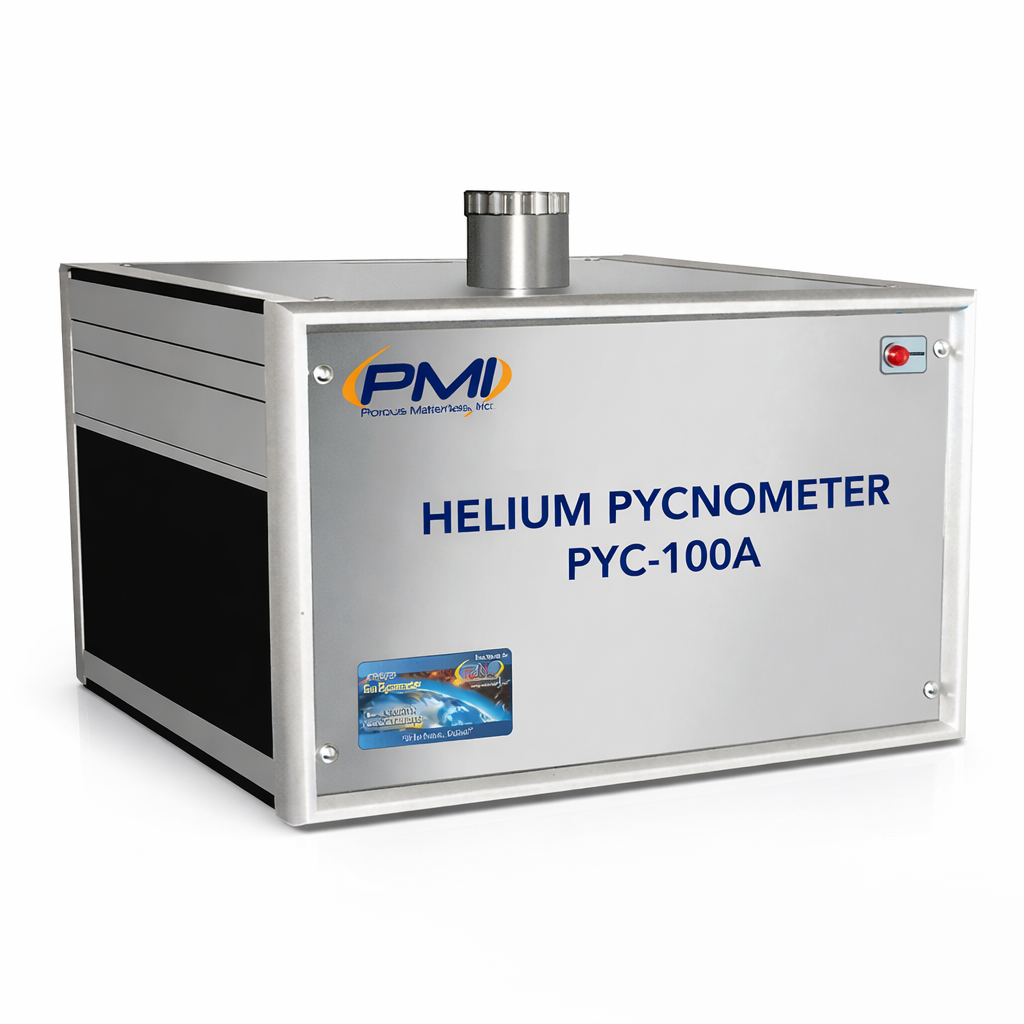

PMI’s Automated Gas and Helium Pycnometer is used to determine the true volume and true density of powders and bulk solids using high‑precision volume measurements and density calculations. The true volume of a solid is calculated from the measured drop in pressure when a known amount of gas expands into a chamber containing the sample. Thus, the true volume obtained by pycnometry includes any pore volume accessible to the gas. Helium is the preferred gas, because it exhibits ideal gas behaviour.  However, almost any non‑corrosive gas, including air, can be used. The true density is obtained by dividing the weight of the sample by the true volume.

Specifications:

Sample Size 100 cc
Number of Sample Chambers 1
Sample Chamber Size 1 in (D) × 2.5 in (L)
Sample Type Single sample loading feature combined with automatic repeated runs for a user‑specified maximum number of runs for ease of operation and high performance.
Accuracy ± 0.05% of full‑scale volume.
Total Analysis Time Less than 5 minutes
Gas type Helium or any non‑corrosive gas, including air.
Safety Mechanical relief valves prevent over‑pressurization at critical locations
Power Requirements 110 / 220 ± 10 VAC, 50 / 60 ± 1 Hz
Environmental Temperature Up to 45 °C
Environmental Humidity Up to 85%



Category:

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • The PMI Automated Gas Pycnometer can be operated via a personal computer (PC) in either automatic or manual mode.
  • Non-destructive.
  • Instrument can repeat measurements automatically with user‑defined settings.
  • Automated Control.
  • Includes calibration volumes.
  • Pore Structure Characteristics: Absolute Density.
