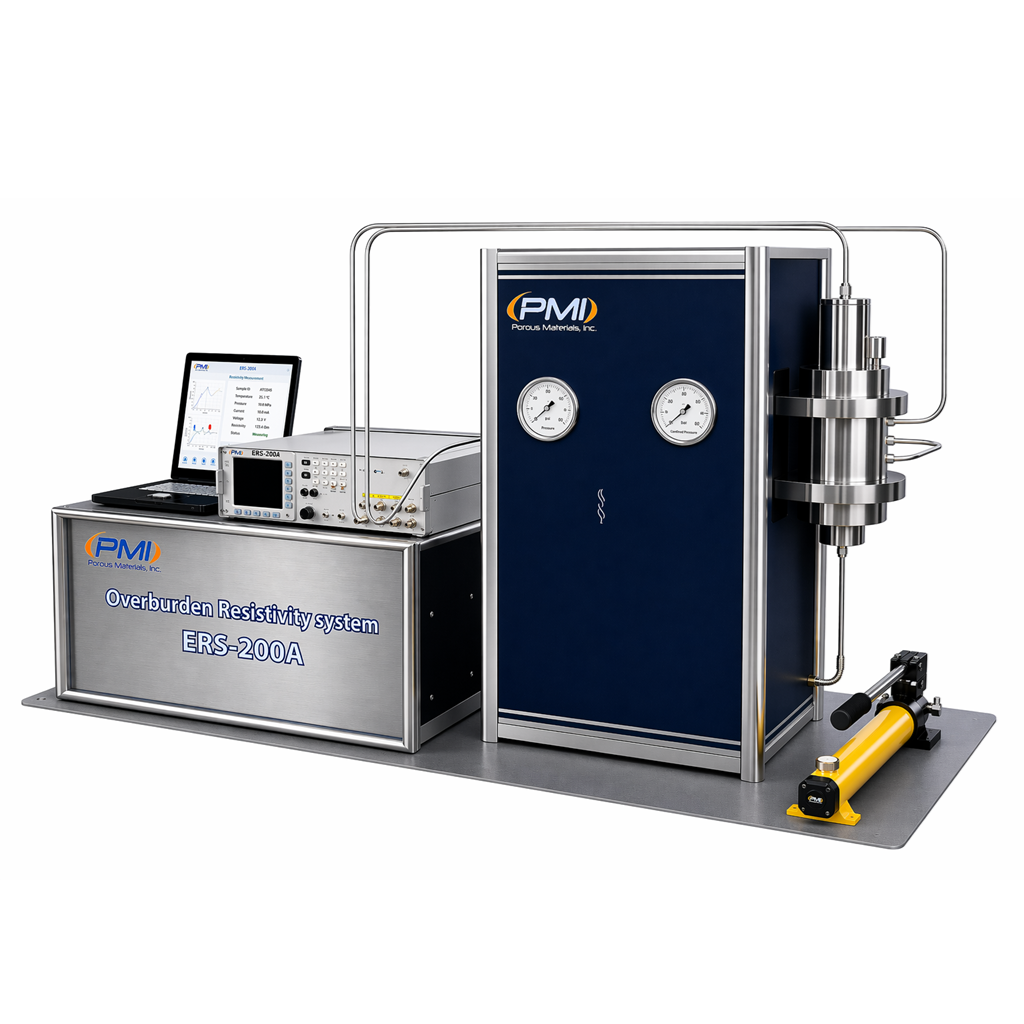

ERS-200A

ERS-200A



Core Holder Dia 1.0 to 1.5 inches
Core Holder Length Up to 3 inches
Temperature Ambient
RCL Meter Specifications
  • 4-electrode measurement capability
  • Resistance Measurement Range: Up to 200 MΩ Resistance: Up to 200 MΩ
  • Measurement Frequency: 1 kHz
  • Resistance Measurement Accuracy: ±0.1%
Power supply 220 VAC (other options available)
Core Resistivity Measurements
  • Resistivity measurement
  • Frequency measurement

Software Features:

  • Graphical presentation of data for evaluation and analysis of test results.
  • Export of graphical data to Microsoft Excel or Microsoft Word for report generation.
  • PMI Software includes integrated detailed help system.
Category:

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • Data is recorded using PMI software in either manual or automatic modes.
  • The RCL meter is controlled through PMI software.
  • Educational Control System (ECS).
  • 4-electrode measurement system.
  • Simple and quick sample setup.
  • The core holder is designed to minimize operator error during the sample loading process.
  • Simple test setup through PMI software.
  • Mercury-free testing method.
