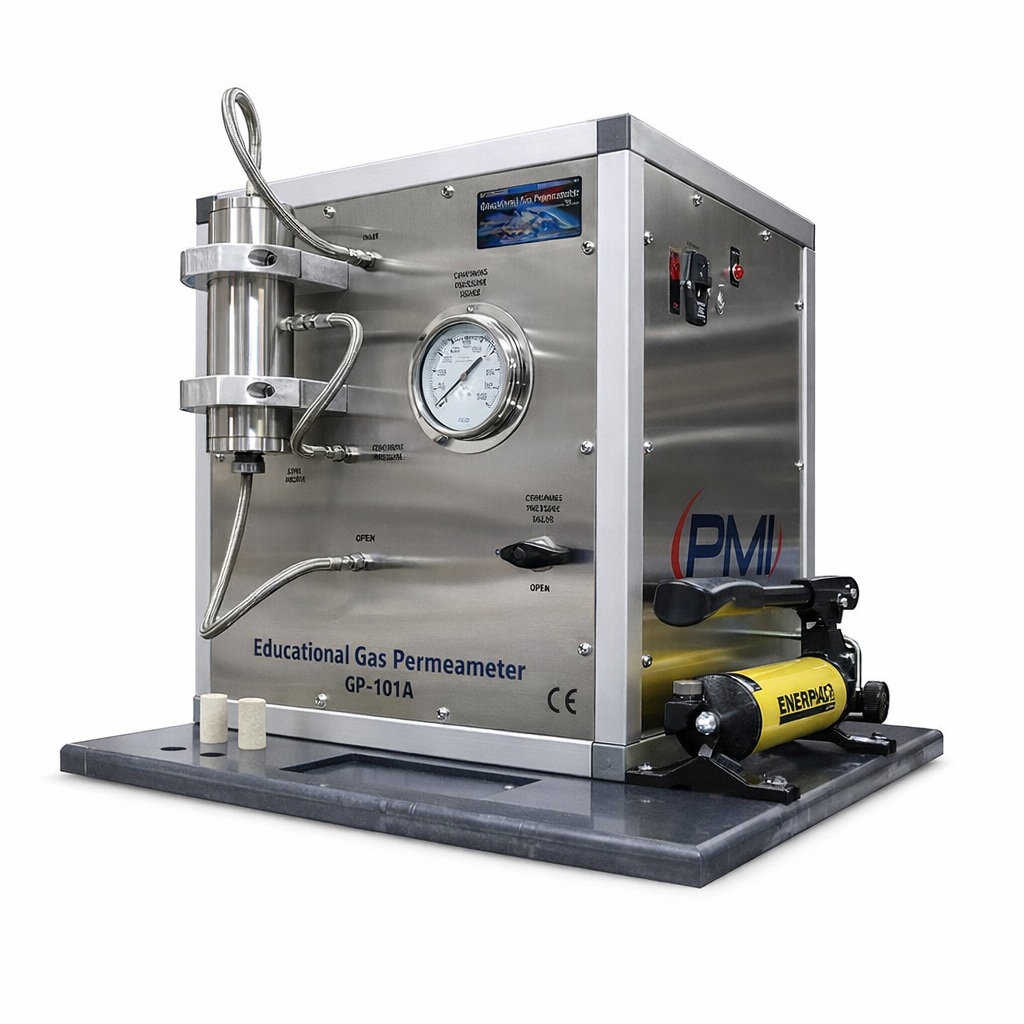

Educational Gas Permeameter

Educational Gas Permeameter

The PMI Educational Gas Permeameter is designed for instructional use in universities and other teaching institutions. The instrument features a robust design suitable for repeated student use. It demonstrates the fundamental principles of gas permeability and helps students develop a deeper understanding of core analysis concepts.

Specifications:

Permeability Range 1 mD to 10 Darcys
Core Length Up to 3 inches
Core Dia 1 to 1.5 inches
Flow pressure 0 to 200 psi
Confining Pressure 0 to 10,000 psi
Confining pressure System Manual Pump
Pressurizing Gas Clean, dry compressed air or other non-flammable, non-corrosive gases
Pressure Transducer Accuracy ±0.1% of full scale
Mass Flow Transducer Range 10 cc/min to 10 L/min
Thermometer Accuracy ±0.1 °C
Wetted Materials Stainless Steel, Viton, Teflon
Power Requirements 110/220 VAC, 50/60 Hz



Categories: ,

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • Measured values are recorded and reported through PMI software.
  • Simple and quick sample setup.
  • The core holder is designed to minimize operator error during the sample loading process.
  • Designed to work with a variety of core samples.
  • The software fully controls the instrument during testing and also allows manual control when required.
