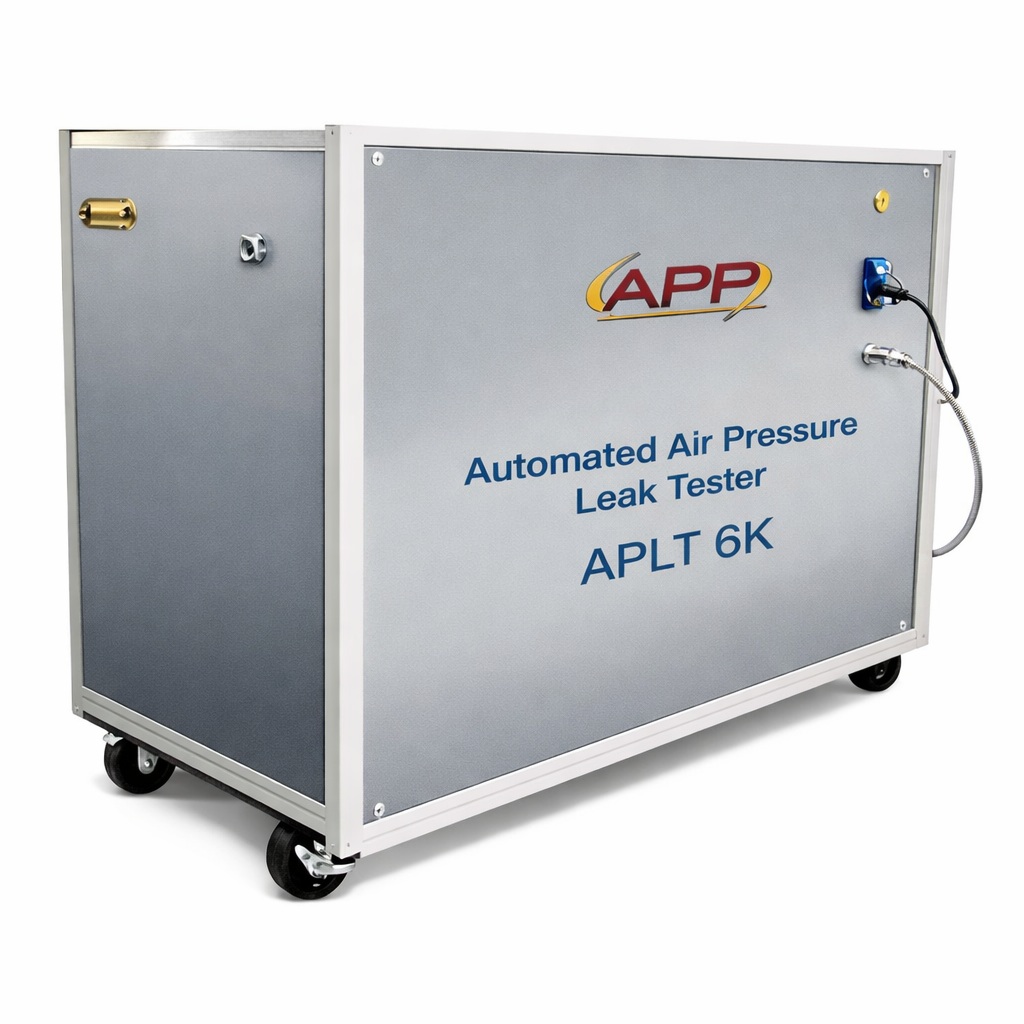

Automated Air Pressure Leak Tester

Automated Air Pressure Leak Tester

PMI’s Automated Air Pressure Leak Tester provides precise pressure generation and control from atmospheric pressure up to 5,076 psi. The APLT is fully automated and controlled by an integrated microprocessor. The system allows users to define multiple target pressures, holding times, and pressurization rates. The system can be integrated into an existing testing setup or operated as a standalone unit.

Specifications:

Working Fluid Air
Air Requirement 0.55MPa (72PSI)
Detectable Sizes 5 mL to 220 L
Pressure Range 0-35MPa (5,076 psi)
Pressure Transducer 0-35MPa (5,076 psi) (Accuracy: Up to 0.1 % FS)
System Resolution 1/65536
System Control Accuracy +/- 0.2 % FS
Pressurized Rate 0.7 kPa/sec-1,380 kPa/sec (0.1PSI – 200PSI)
Power Requirements 220 VAC, 50/60 Hz
Confirms to Standard IS 1783



Category:

If you are interested in this product and would like detailed specifications, pricing information, or application support, please submit an enquiry and our team will respond promptly.

Make Enquiry
  • A highly accurate pressure transducer continuously monitors system pressure and provides feedback control.
  • Supports multiple user-defined target pressures, dwell times, holding times, and pressurization rates.
  • A multi-level fail-safe system provides protection against over-pressurization.
  • Windows-based software manages system control, measurement, data acquisition, and report generation; manual control is also available.
  • Compatible with Windows 98 or later operating systems.
  • A real-time graphical interface displays system status and results throughout operation.
  • Multiple pressure outlet ports are available.
  • Automatic pressure generator refill enables continuous operation during high-volume testing.
  • Customizable report formats are available.
  • Requires minimal maintenance.
