Introduction
How much air can pass through something and how thick a fiber is can tell you a lot about how good and how well things like textile items, nonwoven fabrics, and filters will work. These things matter in anything that lets air pass through. When you measure air permeability and fiber thickness the right way, it helps the makers make every product do the same job every time. This also makes products better and helps them meet what the industry needs.

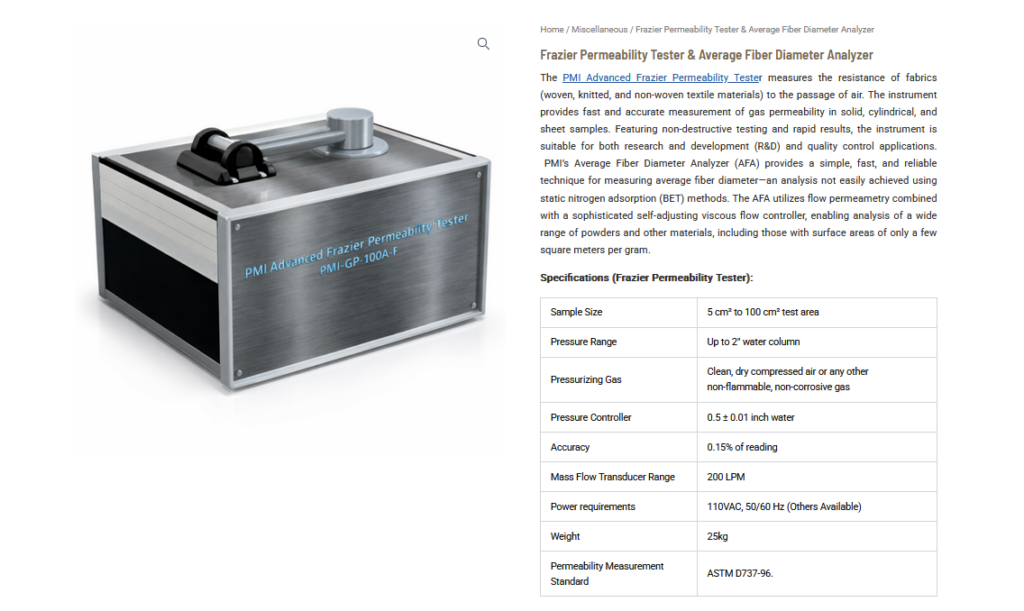

The Frazier Permeability Tester & Average Fiber Diameter Analyzer from PMI is a tool that helps you get clear numbers for air passing through and the width of fibers. You can use this device to try new ways to measure airflow. It has features that make it good for checking work in tests or when making something new. The tool also helps make sure things turn out right and lets you study different kinds of fibers in many fields.
Understanding Air Permeability Testing
Air permeability shows how much air can pass through something when there is a set pressure on it. This matters because it can change how comfortable it is, how well it filters, how easy you can breathe, how warm it feels, and how long it will last.
We use many materials that let things pass through them in different ways for things like:
- Technical textiles
- Medical fabrics
- Filtration media
- Safety clothing
- Automotive interiors
- Industrial fabrics
- Nonwoven materials
- Composite products
Getting good permeability numbers helps people who make things know if their products work well in real life. This can show if what they build will be good for use by others.
What is a Frazier Permeability Tester?
The Frazier Permeability Tester is a tool people in the industry use to check how well air passes through fabric and other things that let air go through. This tester looks at how much the thing stops air from flowing.
The PMI Advanced Frazier Permeability Tester is used to check the things below:
- Woven fabrics
- Knitted textiles
- Nonwoven materials
- Filter media
- Porous sheets
- Industrial fabrics
- Technical textiles
The instrument gives you fast and reliable results. It does not cause damage when you use it to test. You can use this tool in the lab or when you check product quality during production.
How the Frazier Permeability Tester Works
The testing process checks how much air can go through the sample. This is done by using a set pressure. The test shows the amount of air that gets through the sample.
The instrument then finds the permeability values by using the following steps:
- Pressure drop
- Airflow rate
- Sample area
- How hard it is for air to go through the sample
These measurements help the people who are in research and people who make things. They let them see how good something works when you test it the same way each time.
Average Fiber Diameter Analysis
The width of the fiber is very important. It can help you see how to use fibrous items and how they will work.
The main things that change because of how wide the fiber is are:
- How well the filter can work
- Size of the surface
- How the air can go through
- How strong it is
- How much it can take in
- How good it is at keeping particles in
PMI’s Average Fiber Diameter Analyzer (AFA) gives you an easy way to get the average fiber diameter. It works with the nitrogen adsorption (BET) method. This way, you get results that are good and can be trusted.
Benefits of Average Fiber Diameter Measurement
Clear fiber width tests help makers:
Improve Filtration Performance
Smaller fibers help you get better filtration. They also give you more surface area.
Optimize Product Design
Knowing about fiber size helps engineers make things that fit their plans. It lets them see how the fibers work. This is important, because they want to build things that do what they need.
Enhance Quality Control
Watching the width of the fiber all the time helps to make sure every batch is the same.
Support Research and Development
Researchers can see new materials. They also look at how these materials work. This helps them find out what is good or bad about each one.
Advanced BET-Based Analysis Technology
The Average Fiber Diameter Analyzer works by using tested BET adsorption ideas.
This technique offers several advantages:
- High measurement accuracy
- Trustworthy repeatable results
- No damage testing
- Works with many types of items
- Quick test results
The built-in system for thick flow helps you look at different types of things. You can also check things that have less surface in them.
Key Features of the Frazier Permeability Tester
Fast and Accurate Measurements
The tool helps you test things fast. You still get good results. You can trust the results will be the same every time you use it.
Non-Destructive Testing
Samples do not change after testing. This means you can do more tests if there is a need.
Wide Sample Compatibility
Suitable for:
- Woven textiles
- Nonwoven fabrics
- Filter media
- Composite materials
- Technical fabrics
- Porous sheets
Quality Control and R&D Applications
The system can help you with everyday work tests. You can also use it for advanced research projects.
Compliance with Industry Standards
Permeability checks are done when you follow well-known testing steps.
Technical Specifications
| Specification | Details |
|---|---|
| Sample Size | 5 cm² to 100 cm² Test Area |
| Pressure Range | Up to 2″ Water Column |
| Pressurizing Gas | Clean, Dry Compressed Air or Other Non-Flammable, Non-Corrosive Gas |
| Pressure Controller | 0.5 ± 0.01 Inch Water |
| Accuracy | 0.15% of Reading |
| Mass Flow Transducer Range | 200 LPM |
| Power Requirements | 110 VAC, 50/60 Hz (Other Options Available) |
| Weight | 25 kg |
| Testing Standard | ASTM D737-96 |
Applications Across Industries
Textile Industry
The Frazier Permeability Tester is often used to see:
- Apparel fabrics
- Sportswear materials
- Technical textiles
- Safety garments
- Upholstery fabrics
Benefits
- Better comfort
- Good airflow
- Same product quality every time
Filtration Industry
Manufacturers use data about permeability and fiber diameter to make things better in these ways:
- Air filters
- Liquid filters
- HEPA media
- Industrial filtration systems
- Dust collection materials
Benefits
- This gets more dirt.
- You do not need to use much force.
- The system works better.
Medical and Healthcare Products
Testing supports development of:
- Surgical masks
- Medical gowns
- Products for breathing
- Textiles for healthcare
Benefits
- You get reliable breathability.
- There is steady barrier performance.
- This product meets regulatory rules.
Automotive Applications
Engineers analyze materials used in:
- Cabin air filters
- Interior textiles
- Sound-blocking insulation materials
- Engine filtration systems
Research and Academic Laboratories
The system is used by universities and research places for:
- The study of different types of stuff
- Research on how fiber does what it does
- Checking how things let stuff through
- Seeing how much surface is there
Advantages of PMI’s Integrated Solution
Comprehensive Material Characterization
Testing how easy it is for something to pass through, along with checking the size of the fiber, helps people understand the stuff they are testing. This way, they can get a good feel for what it is like.
Improved Product Development
Researchers can learn a lot about how something works when they look at things you can measure. When they have this information, they can use it to make it better.
Enhanced Quality Assurance
Routine tests help keep things running the way they should in production. They also make sure the product you get will work well.
Increased Testing Efficiency
Quick tests can help cut down the time it takes to get results in the lab.
Reliable and Repeatable Results
The advanced tools help you feel sure about the test results.
Why Choose PMI’s Frazier Permeability Tester & Average Fiber Diameter Analyzer?
PMI is known by people all over the world. The company makes smart tools. These products be useful for things like porous materials, filtration science, and membrane testing. They also help with checking and looking at different samples.
Key advantages include:
- High measurement accuracy
- ASTM-approved testing
- Reliable fiber width study
- Easy-to-use operation
- Strong lab-grade build
- Proven research and work results
- Full technical help
These features make PMI’s solution a good pick for the labs, makers, and the research groups. It can give them reliable ways to look at and check materials.
Conclusion
The Frazier Permeability Tester & Average Fiber Diameter Analyzer gives you a strong tool. You can do air permeability tests and check fiber size with this new system. It gives good, steady results that match industry rules. This helps people who make or study things to get better products, have good results, and come up with new ideas faster.
Whether you use it to make clothes, test filters, create medical items, or for study, PMI’s testing solution helps you get the results you need. You can trust it for new material testing work.
