Membrane distillation (MD) has emerged as a promising thermal separation technology for water treatment, desalination, wastewater recovery, and industrial process applications. As industries seek more energy-efficient and sustainable filtration methods, researchers require advanced laboratory equipment to evaluate membrane performance under controlled conditions. The Membrane Distillation Module (AGMD, VMD, SGMD, DCMD, CGMD, PGMD) from PMI is specifically designed to support comprehensive membrane testing and process optimization.
Understanding Membrane Distillation Technology
Membrane distillation is a thermally driven separation process that utilizes hydrophobic membranes to allow water vapor to pass through while rejecting dissolved salts, contaminants, and other non-volatile substances. Unlike conventional pressure-driven membrane processes, membrane distillation operates using a temperature difference across the membrane, creating a vapor pressure gradient that drives mass transfer.
Several membrane distillation configurations are commonly used in research and industrial applications:
- AGMD (Air Gap Membrane Distillation)
- VMD (Vacuum Membrane Distillation)
- SGMD (Sweeping Gas Membrane Distillation)
- DCMD (Direct Contact Membrane Distillation)
- CGMD (Conductive Gap Membrane Distillation)
- PGMD (Permeate Gap Membrane Distillation)
Each configuration offers unique advantages depending on the application, operating conditions, and performance objectives.
PMI Membrane Distillation Module Overview

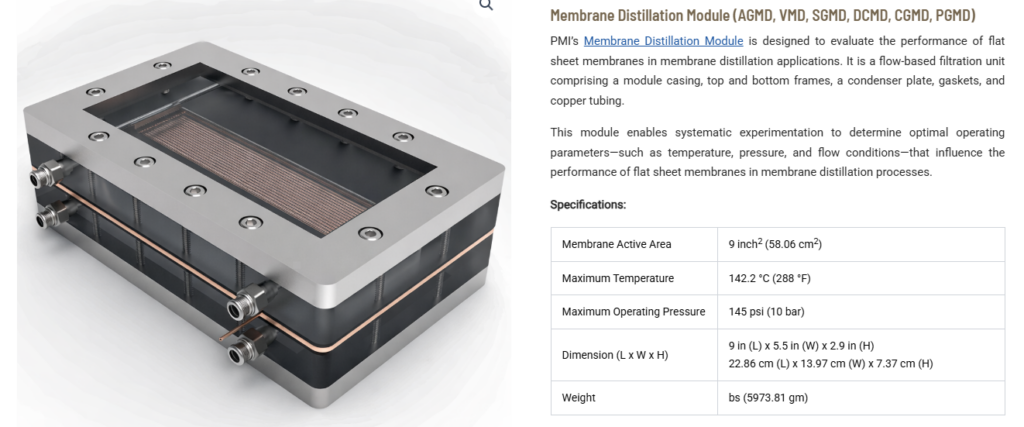

The PMI Membrane Distillation Module is a precision-engineered laboratory unit designed to evaluate flat-sheet membranes under various membrane distillation conditions. The system provides researchers, universities, and industrial laboratories with a reliable platform for studying membrane performance, heat transfer, mass transfer, and process efficiency.
The module features a robust construction consisting of:
- Durable module casing
- Stainless steel top and bottom frames
- Condenser plate assembly
- High-performance sealing gaskets
- Copper tubing connections
- Transparent viewing section for process observation
This advanced design enables accurate experimental analysis while ensuring long-term durability and repeatability.
Key Benefits of the Membrane Distillation Module
1. Accurate Membrane Performance Evaluation
Researchers can systematically assess membrane efficiency, permeability, flux rates, rejection performance, and operational stability.
2. Flexible Operating Conditions
The module allows testing across a wide range of temperatures, pressures, and flow conditions, enabling optimization for various applications.
3. Support for Multiple MD Configurations
Compatible with AGMD, VMD, SGMD, DCMD, CGMD, and PGMD studies, making it a versatile solution for membrane research programs.
4. Reliable Experimental Results
Precision manufacturing and quality materials ensure consistent experimental outcomes and reproducible data.
5. Educational and Industrial Applications
Suitable for universities, research institutions, membrane manufacturers, and industrial R&D laboratories.
Technical Specifications
| Specification | Value |
| Membrane Active Area | 9 in² (58.06 cm²) |
| Maximum Temperature | 142.2°C (288°F) |
| Maximum Operating Pressure | 145 psi (10 bar) |
| Dimensions (L × W × H) | 9 × 5.5 × 2.9 inches |
| Dimensions (Metric) | 22.86 × 13.97 × 7.37 cm |
| Weight | 5973.81 grams |
Material of Construction
The module incorporates high-quality materials to withstand demanding research environments:
| Component | Material |
| Gaskets | Viton |
| Module Case | PVC |
| Top & Bottom Frame | SS-304 Stainless Steel |
| Condenser Plate | Copper, Aluminum, Stainless Steel |
Applications of Membrane Distillation Modules
The PMI Membrane Distillation Module can be used in a wide range of applications, including:
- Desalination research
- Industrial wastewater treatment
- Water purification studies
- Membrane material development
- Process optimization and scale-up
- Heat and mass transfer investigations
- Pharmaceutical and chemical separations
- Academic research and teaching laboratories
Why Choose PMI’s Membrane Distillation Module?
PMI’s expertise in membrane characterization and porous material analysis has resulted in a highly reliable and versatile membrane distillation platform. The module enables detailed evaluation of membrane performance while supporting multiple distillation configurations in a single research system.
Whether you are developing next-generation membranes, optimizing desalination processes, or conducting academic research, PMI’s Membrane Distillation Module provides the precision, flexibility, and reliability required for advanced membrane science.
Conclusion
As demand for efficient water treatment and separation technologies continues to grow, membrane distillation remains a critical area of research and innovation. PMI’s Membrane Distillation Module offers researchers a powerful tool to investigate membrane behavior, improve process performance, and accelerate the development of sustainable separation technologies.
For laboratories seeking accurate, repeatable, and versatile membrane testing capabilities, this module represents an essential solution for advancing membrane distillation research and industrial applications.
