Understanding Liquid Permeability in Reservoir Rocks
Permeability is one of the main petrophysical properties people use to see how well a rock lets fluids move through it. When we get good values for permeability, it helps engineers, geologists, and others who work with rocks know how a reservoir works. It also helps them plan for production and to get more oil and gas from it.

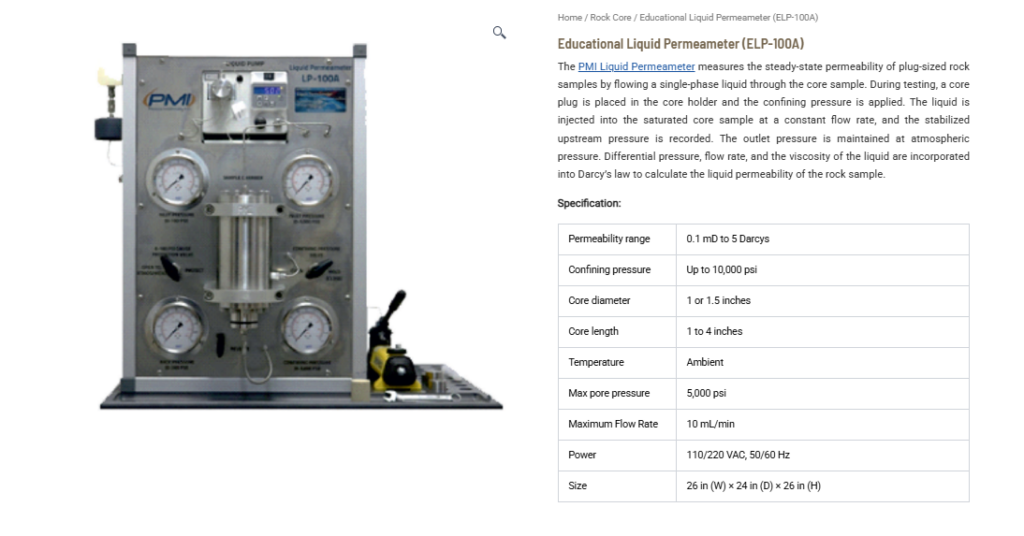

The Educational Liquid Permeameter (ELP-100A) lets you see how much liquid can move through small pieces of rock. The ELP-100A shows good results. It is simple to use. So, it works well for schools, labs, and training when you want to work with petroleum engineering.
What Is the ELP-100A?
The ELP-100A is a tool that you use in a lab. It helps you know how much liquid can pass through a rock core. A liquid goes through a wet core while you set the pressure. The system uses Darcy’s Law. This rule explains how liquids move through small spaces in rock.
During the test, they put a rock core sample in the core holder. The sample is pressed from each side. A liquid is then pushed through the sample at a set flow speed. At the same time, the team checks the pressure differences. All of this helps to know the permeability of the rock in a good way.
This hands-on testing lets students and researchers watch how fluids move in rocks or soil. It helps them learn about how fluid flow works in these places.
How the ELP-100A Measures Permeability
The ELP-100A is made to see how liquid moves through a wet core. It works by keeping the flow even. This helps people know how simple it is for the liquid to get through the rock.
The testing process includes:
- Soak the rock core with the test fluid.
- Put the sample in the core holder.
- Add pressure around it.
- Push in the fluid slowly at the same speed.
- Check how the pressure changes while the fluid passes through the sample.
- Use Darcy’s Law to see how easy it is for the fluid to move through.
This way of doing things helps you get data about permeability that you can trust. You also use the same steps every time, so you get the same results. It is good for people in schools and for those who work on research.
Key Features of the ELP-100A
1. Steady-State Liquid Permeability Testing
The ELP-100A is a tool that lets you see how much liquid moves through an object. You can use it in the lab when you want to control the setting. It works well for knowing how liquid goes in or comes out of rocks that have small holes.
2. Wide Permeability Measurement Range
The system can evaluate permeability values from:
0.1 mD to 5 Darcys
This wide range lets you test both layers. Some layers do not let much go through. Some layers let a lot pass.
3. High Confining Pressure Capability
To be like what you get in a reservoir, the ELP-100A can hold forces up to:
10,000 psi
This lets people run lab tests on different kinds of core samples.
4. High Pore Pressure Operation
The system accommodates maximum pore pressures of:
5,000 psi
This lets researchers do new tests on how things pass through when the pressure is high.
5. Precision Flow Control
With a maximum flow rate of:
10 mL/min
This tool lets you add liquid in a slow and steady way. With this, you can find out the right permeability numbers.
6. Educational-Focused Design
The ELP-100A is made for students to see and learn about how things can flow through a material. They can practice and do lab work with their hands. This helps them get real training.
Technical Specifications
| Specification | Details |
|---|---|
| Permeability Range | 0.1 mD to 5 Darcys |
| Confining Pressure | Up to 10,000 psi |
| Core Diameter | 1 inch or 1.5 inches |
| Core Length | 1 to 4 inches |
| Operating Temperature | Ambient |
| Maximum Pore Pressure | 5,000 psi |
| Maximum Flow Rate | 10 mL/min |
| Power Supply | 110/220 VAC, 50/60 Hz |
| Dimensions | 26 in (W) × 24 in (D) × 26 in (H) |
Benefits of Using Darcy’s Law for Permeability Measurement
Darcy’s Law is still the way that people measure how easy it is for fluids to flow through something in the industry today. This is because it gives:
Reliable Results
Get the correct numbers for permeability. This will help you know more about the reservoir and do the needed engineering tasks.
Fundamental Understanding
I want to help students and people who do research. I want them to better know how liquid moves in things that have small holes.
Practical Reservoir Evaluation
Show the main numbers. These tell how good the reservoir is. This helps to know if it can make oil or gas well.
Repeatable Measurements
Make sure the results you get from each test and sample match. This way, you can see what changes when you put them side by side.
Applications of the ELP-100A
Petroleum Engineering Education
The ELP-100A is a good tool for teaching. You can use it to show how to measure permeability. It also helps people see how fluid moves in rocks that are in the earth where oil and gas stay.
Core Analysis Laboratories
Check how easy it is for liquid to move when you look at a reservoir study. Also, see how the formation is.
Geological Research
Find out how fluids move in rocks. See how the way fluids go through rocks can change with different rock types.
Reservoir Engineering Studies
Get permeability data for your model of the reservoir. You can use this data to predict production and do recovery tests.
Academic Research Projects
I can help you with lab work on petrophysics, rock studies, and how fluids move in small spaces inside rocks.
Advantages of the ELP-100A
The Educational Liquid Permeameter gives labs and people who are learning a lot of good things.
- You can trust the steady-state permeability measurements
- There is a wide range for testing permeability
- It can take high confining pressure
- You can test liquid flow in a controlled way
- All calculations use Darcy’s Law
- Anyone can use it easily
- It is strong and sturdy for lab work
- It is great for teaching and showing in class
- You get research-quality results
- It does not use much space in the lab
Why Choose the Educational Liquid Permeameter (ELP-100A)?
The ELP-100A is a good tool to use when you want to learn. It has some of the best measuring tools. The system works well for schools, labs, and research centers. The ELP-100A gives steady and correct readings for how liquid moves. As you use it, you can see how fluids go. People can practice and get good lab results that they feel sure about.
The ELP-100A is used for many things. You can use it in petroleum engineering classes. It helps you study rocks and see how oil and gas stay in rocks. The ELP-100A gives you the right results and strength. You get what you need to do today’s permeability tests in a good way.
