Understanding Resistivity Measurements in Reservoir Evaluation
Electrical resistivity is important for people who work with rocks and oil fields. It shows how much a rock stops electric current as it tries to go through. When people check this, they can learn a lot about the rock. They can find out how many small holes are in it. They can also see how much water is inside. They can know how easy it is for things to move through the rock. All of this tells them how good the rock is.
The ERS-200A Overburden Resistivity System is easy to use. It will help you get the right resistivity numbers in any good lab. This tool is good for schools, research labs, and those in oil and gas work. The ERS-200A gives strong information. It works well with top software. You can feel sure when you use it for your tests.
What is the ERS-200A Overburden Resistivity System?

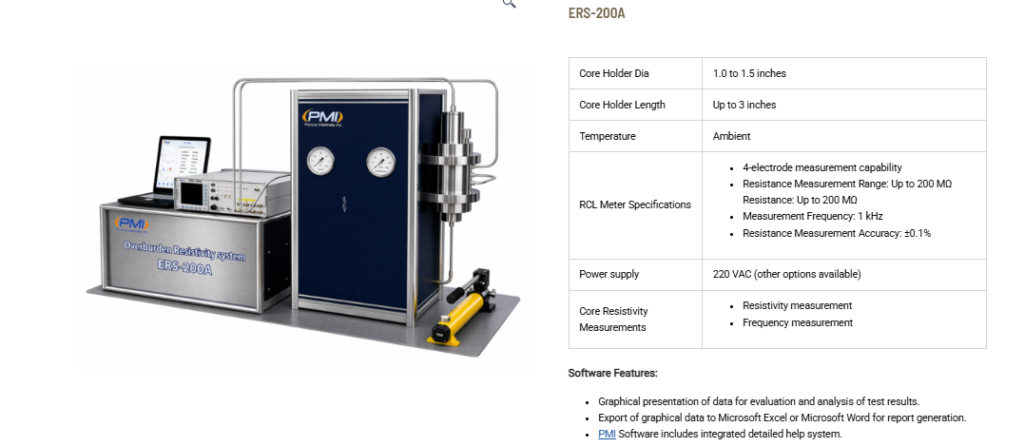

The ERS-200A is a lab tool you use to see how well rock core pieces move electric power. It works with four electrodes, so you get good results. People who look at rocks can see how the samples act in the lab. You can use this tool to get good data when you check places where you find oil or water. You can also use it if you want to know more about rock layers.
The ERS-200A makes it easy to do resistivity tests with its built-in software. You can manage your data with it, so you do not have to work too much. The machine breaks down each step, which keeps testing simple. It also gives results in the lab that you can trust.
Key Features of the ERS-200A
1. Advanced 4-Electrode Measurement Technology
The ERS-200A uses four electrodes to read results. A lot of people know this way is used. It helps you get better numbers and stops problems from contact. The system makes sure you get good and steady results for resistivity. You can use the ERS-200A for research or teaching.
2. High-Precision Resistance Measurement
The integrated RCL meter offers:
- The tool can read up to 200 MΩ of resistance.
- It reads at 1 kHz.
- The reading for resistance is within ±0.1%.
These features help you get steady results with many types of rock samples. They also make sure you get good results every time.
3. Software-Controlled Testing
The system works with PMI software. This lets people do these things:
- You can do tests by hand or use a machine for it.
- Keep an eye on the measurements as they go on.
- Make sure to save and handle the test data well.
- Try to lower the work people have to do when testing.
4. Educational Control System (ECS)
The Educational System is set up to help with teaching and research. It helps students and others learn about resistivity testing. At the same time, they can practice in the lab.
5. Mercury-Free Testing Method
The ERS-200A does a test that does not use mercury. This helps make the lab safe for people. You still get good and trusted measurements with it.
6. Efficient Sample Loading
The core holder is made to be used in labs. It helps lower the chance of making mistakes when loading. It also makes it easy to get samples set up. This can help people work faster and get good measurements each time.
Technical Specifications
| Specification | Details |
|---|---|
| Core Holder Diameter | 1.0 to 1.5 inches |
| Core Holder Length | Up to 3 inches |
| Operating Temperature | Ambient |
| Measurement Method | 4-Electrode Resistivity Measurement |
| Resistance Measurement Range | Up to 200 MΩ |
| Measurement Frequency | 1 kHz |
| Measurement Accuracy | ±0.1% |
| Power Supply | 220 VAC (other options available) |
Powerful Software Features
The ERS-200A comes with great software tools. These tools help you do your work in the lab. They also make it easy for you to see and look at your data.
Graphical Data Visualization
People can use clear charts and graphs to see test results. This helps them look at how resistivity changes as time goes by. They can also see trends in the data.
Report Generation Support
Experimental data can be exported directly to:
- Microsoft Excel
- Microsoft Word
This feature helps you write many kinds of documents and reports. You can use it for your school work, research, or other projects. It makes everything easy for you.
Integrated Help System
The software has a help system that is easy to use. It will help you set up the software. It also shows you how to use it and fix any issues that may come up.
Applications of the ERS-200A
Petroleum Engineering Research
The system is good for studying the area. It gives clear resistivity data. You can use this data to find fluid levels and learn more about the rock.
Academic Laboratory Training
Universities and technical institutes can use the ERS-200A to teach. They use this tool to show students how to do petrophysical tests. The ERS-200A is also good for helping people learn more about resistivity testing.
Geological Investigations
Researchers can look at how electricity moves in many types of rocks. They can also test rock samples in the lab. In the lab, they set up things the way they want. This helps them compare rocks and learn more about them.
Core Analysis Programs
The ERS-200A gives you data that you can trust in the lab. It helps people do their work when they study core samples. This means they look at how porous the rock is, see how things move in the rock, and check the quality of the core sample.
Benefits for Educational and Research Laboratories
Companies that use the ERS-200A can get:
- High-precision resistivity measurements
- Automated and manual testing modes
- Safe mercury-free use
- Easy sample set up and loading
- Full data recording features
- Professional reporting tools
- Simple software interface
- Reliable work for long use in labs
Why Choose the ERS-200A?
The ERS-200A Overburden Resistivity System gives you the right tools, software, and all you need to learn in one lab setup. You can use the 4-electrode feature, which makes the numbers easy to read. The system takes the data for you on its own, so anyone can use it without a problem. This is a good choice for people in a university, a research group, or any lab that works with petroleum engineering.
The ERS-200A is great for teaching students and working on research with rocks. You can use it to look at water and oil places too. It gives you steady and good results every time. This tool helps people find new ways to study rocks and things like water or oil.
