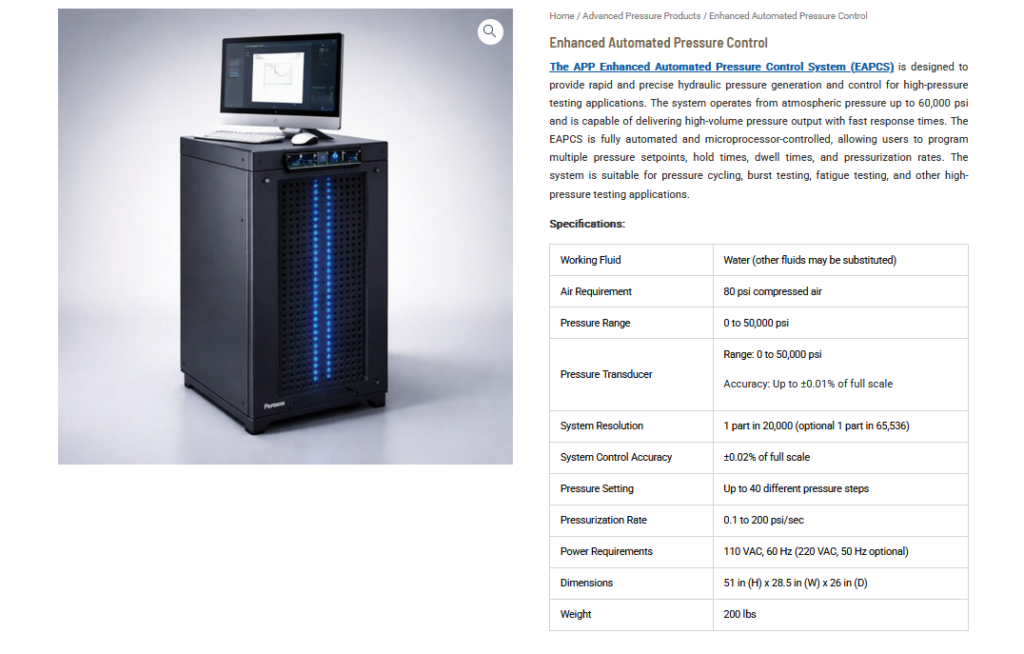

\Enhanced Automated Pressure Control System (EAPCS): Precision, Performance, and Reliability
As more companies want better performance and more safety, there is a need for new ways to test how things deal with pressure. The Enhanced Automated Pressure Control System (EAPCS) helps with this need. It is a new pressure platform that can make and keep high pressure. It gives you the same results each time and it works on its own. EAPCS is made to help you test things with care and in a smart way.
The EAPCS can make air pressure go as high as 60,000 psi. This system gives you good results. It gives you fast answers. You can also set it up in many ways for different work, both in factories and in research.
What is an Enhanced Automated Pressure Control System?
The Enhanced Automated Pressure Control System (EAPCS) is a better tool to measure and guide pressure during hard jobs. It is best for times when pressure gets very high. This system lets you see and handle pressure in a careful way. The EAPCS runs by itself, and it has a microprocessor that helps with every step. You can use it to make your own plans for pressure. These plans can have different steps, times to hold pressure, wait times, and how fast the pressure should rise.
Its advanced design makes it ideal for:
- Pressure cycling
- Burst testing
- Fatigue testing
- Part check
- Product check
- Research and development
- Quality check
Key Features of EAPCS
High-Pressure Capability
The system can make and handle pressure from air pressure up to 60,000 psi. This is good for hard jobs in factories or places like these.
Fully Automated Operation
The EAPCS can make pressure on its own. It also keeps an eye on the pressure and controls it. This means you do not have to do a lot by hand when you do tests. You can finish your tests better and in less time.
Exceptional Accuracy
The built-in pressure sensor shows readings that can be as close as ±0.01% of the full scale. At the same time, the way the system works helps it stay within ±0.02% of the full scale.
Multiple Pressure Setpoints
You can set up to 40 different pressure steps. This helps people make test profiles that run by themselves. It still works well even when there are many steps or a lot of details.
Adjustable Pressurization Rates
The system can change the pressure from 0.1 to 200 psi every second. This means you can use it for slow pressure tests and also fast ones.
High-Resolution Control
The EAPCS has a system resolution of 1 part in 20,000. You can also get a system resolution of 1 part in 65,536 if you want. This lets you make small changes in pressure and get the same results every time.
Applications of Enhanced Automated Pressure Control Systems
Burst Testing
Find out the highest pressure this part can handle before it breaks. Make sure it follows all safety and quality rules.
Fatigue Testing
Keep pressing again and again to see how well the thing will last over time and how good it is.
Pressure Cycling
Set up pressure cycles. This helps copy things in the real world. It lets you find any weak spots that may be in the system.
Research & Development
Help make products better by letting engineers try out new designs. This is useful when there is a lot of pressure on the team.
Quality Assurance
Check the product to see if it works well every time before you send it out for sale. Make sure it stays the same each time.
Aerospace and Defense
Check all the important parts that have to work when the pressure is high.
Technical Specifications
| Specification | Details |
|---|---|
| Working Fluid | Water (other fluids may be substituted) |
| Air Requirement | 80 psi compressed air |
| Pressure Range | 0 to 60,000 psi |
| Pressure Transducer Accuracy | Up to ±0.01% FS |
| System Control Accuracy | ±0.02% FS |
| Resolution | 1 part in 20,000 (optional 1 part in 65,536) |
| Pressure Settings | Up to 40 pressure steps |
| Pressurization Rate | 0.1 to 200 psi/sec |
| Power Requirements | 110 VAC, 60 Hz (220 VAC, 50 Hz optional) |
| Dimensions | 51″ H × 28.5″ W × 26″ D |
| Weight | 200 lbs |
Benefits of Using EAPCS
Improved Testing Accuracy
High pressure control helps make sure the test results are right and can be done again.
Faster Test Execution
Automated operation helps people get things ready faster. It can also make the work go better. This can save time and help you do more during the day.
Enhanced Product Quality
Find problems with the design before the products go to the customers.
Reduced Operational Costs
Automation helps people do less work. It also helps testing be better and faster.
Increased Safety
Keeping the right pressure will help you stop damage to the machines. It also makes the testing place safer for people who work there.
Industries That Benefit from EAPCS
The Enhanced Automated Pressure Control System is often used in:
- Oil & Gas
- Aerospace
- Automotive
- Medical Device Making
- Industrial Equipment Making
- Research Labs
- Defense Uses
- Fluid Power Part Testing
- Energy Field Testing
Why Choose an Automated Pressure Control System?
Modern testing labs need more than just making pressure. They need to be exact in their work. They have to use machines to do many tasks. It is important for them to do every test in the same way each time. They also need to have good tools to manage data. The EAPCS puts all these things together into one system. It helps teams make products that people can trust. It also lets them meet rules and think of new ideas quicker.
The EAPCS is good to use in any place where you need to do important pressure tests. It has new ways to handle pressure. You can work with high pressure and change how you set up the test to fit what you need.
Conclusion
The Enhanced Automated Pressure Control System (EAPCS) is one of the top systems in the field. It is used when you need high-pressure testing, pressure cycling, burst testing, and to see how parts wear out over time. The EAPCS can handle pressure up to 60,000 psi. It has smart automation and very good ways to take readings. This system gives the results people want in tough testing spots now.
No matter if you work on making products, check for good quality, or do research, EAPCS gives you the right level of trust and surety that you need. You can count on it to help you get the same, good results each time.
