Introduction
The right fluid pressure is very important for many jobs. A lot of industries must be strong when they test, check quality, and do research. You can see this need in airplane and car factories. It is also there when people test machines or study what things are made of. Good pressure rules help keep people safe. They also help things stay steady and let companies meet what their industry needs.
The Automated Pressure System (APCS) from APP helps people set and keep the right pressure for water or other fluids. The machine uses a smart chip and an encoder, and you also can pick the pressure you want. With the APCS, you can run tests many times and get the same good results. You can trust the numbers every time you use it. This system can start at air pressure and can go up to 2,000 psi.
The APCS is easy to use and does a good job. You can use it alone, or with an automatic system. It works well in the lab for tests. Teams in the factory or doing research can use it too.
What is an Automated Hydraulic Pressure Control System?
An Automated Pressure System is a smart tool. It can make and set the right pressure for you. The system also keeps the right pressure in your setup. It does all of this by itself, based on what you ask for.
The APCS does not work the same way as doing things by hand. It watches the system pressure all the time. It can make quick changes to keep things steady and working well.
This automated approach provides:
- The testing will help you get better results.
- It helps you have the same results every time you do it.
- It needs less help from people to do the work.
- It makes things more safe.
- Tests get done in less time.
The result is a pressure system you can trust. It works well, even for tough jobs in factories and schools.
Why Precise Hydraulic Pressure Control Matters
Pressure is a key part of tests and the way things are made. A small change in pressure can make something work well or not. It can also change how the test goes. The pressure helps people know if it is good or bad.
Having the right water pressure with machines is important for:
- Pressure vessel testing
- Part review
- Leak testing
- Review of what the item is made of
- Product approval
- Process automation
- Research and development
Automated systems help you take away problems that come up when you set pressure by hand. They also make the whole thing smoother and easy for people.
Key Features of the Automated Hydraulic Pressure Control System
Fully Automated Pressure Regulation
The APCS can work by itself. A smart microprocessor system runs it.
Users can program:
- Target pressures
- Pressure ramp rates
- Hold times
- Test sequences
- Pressurization cycles
The system will keep the pressure steady on its own. It will use the test settings that you pick when you start to do this.
Wide Pressure Range
The APCS can help you get a better hold on the pressure. It does this by using oil or fluid from:
Atmospheric Pressure to 2,000 psi
This range is good for many tests and for a lot of jobs. It gives steady pressure that the liquid system can keep steady.
Encoder-Based Precision Control
The built-in encoder helps you set the pressure the right way. It also lets you make sure you use this feature the right way. This makes it easy for anyone to use.
Benefits include:
- The pressure stays the same or gets better.
- There is a good way to see it.
- You get real answers about the system.
- You can do things again at the best level.
This type of care is important. You need it when you research and do quality checks.
High-Accuracy Pressure Measurement
The APCS comes with new pressure sensors. These sensors are able to give you good and steady pressure readings.
Pressure Transducer Specifications
- Pressure Range: 0 to 2,000 psi
- Up to about ±0.1% of full scale
This high level of being right makes people feel good and sure when they take big tests. It also helps them feel sure when they look back at things later.
Exceptional System Resolution
The APCS is special because it can handle high pressure very well. This is one thing that makes it stand out.
System Resolution
1 Part in 65,536
This helps the system find and handle even the smallest changes in pressure. It gives the system good results when doing testing jobs.
Reliable Control Accuracy
System Control Accuracy
±0.2% of Full Scale
The smart setup will always change the pressure. This helps things stay steady from the beginning to the end while you test.
Flexible Working Fluid Compatibility
The APCS works with many kinds of fluids. So, you can use it for many jobs. This gives you more options each time you use it.
Supported fluids include:
- Water (H₂O)
- Hydraulic oils
- Alcohol-based fluids
This system is good in many ways. You can use it at the factory, or in the lab. It will help people get testing jobs done. This system can work well for most test needs.
Integration with Automated Testing Systems
The Automated Water Pressure System can work as:
Standalone Testing Equipment
This works well in the lab. It is also good for places that are set up just for testing.
Integrated Automation Solution
The APCS can be incorporated into larger:
- Automated test benches
- Manufacturing systems
- Quality check setups
- Product check sites
This design works well for small research work. It can also be used for big jobs in the industry.
Applications of the APCS
Pressure Vessel Testing
Manufacturers use the APCS to check things with hydrostatic pressure. They do these tests in a safe and controlled way.
- Cylinders
- Tanks
- Pipes
- Pressure vessels
The system makes sure the pressure stays the same every time. This helps you have steady testing each time.
Leak Testing
Carefully checking the pressure can help a lot to find leaks in:
- Industrial parts
- Liquid systems
- Seals and gaskets
- Valves and fittings
Product Validation
Engineers use the APCS to see if products work well and keep going for a long time. They make this check by putting the products under water pressure while they use them.
Applications include:
- Automotive parts
- Aerospace systems
- Medical devices
- Industrial machines
Research and Development
Research laboratories benefit from:
- The tests can be done in a steady way.
- You can get the same pressure readouts each time.
- The data collected is clear and right.
- You can make the process better.
Manufacturing Quality Control
Production facilities utilize the APCS for:
- Regular pressure testing
- Batch checking
- Compliance testing
- Product approval
Advantages of Automated Pressure Control
Improved Testing Accuracy
Automated regulation helps stop mistakes that people can make. It also helps to keep the pressure steady and the same all the time.
Enhanced Repeatability
You can keep the test conditions the same for all samples. You can do this again in later testing rounds.
Increased Productivity
Automated operation lets you spend less time on setting things up. It also helps make the job easy for the people who use the machine.
Better Data Quality
When you use high resolution, the test data will be more clear. This way, you can get good and right test data.
Greater Safety
Using automated monitoring and checking can help lower the risk that comes up when people change the pressure by hand. This way, the work will be done in a better and safer way.

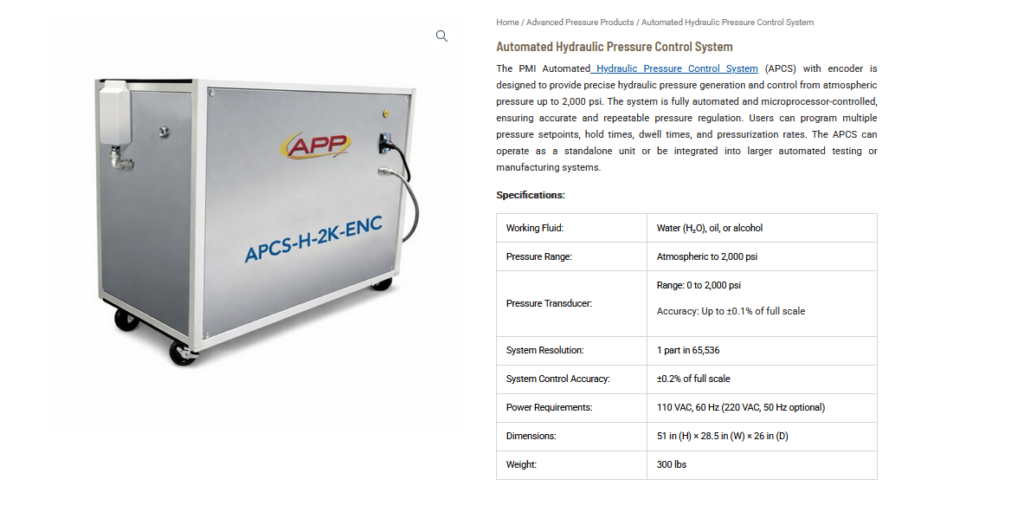

Technical Specifications
| Specification | Details |
|---|---|
| Working Fluid | Water (H₂O), Oil, or Alcohol |
| Pressure Range | Atmospheric to 2,000 psi |
| Pressure Transducer Range | 0 to 2,000 psi |
| Pressure Transducer Accuracy | Up to ±0.1% of Full Scale |
| System Resolution | 1 Part in 65,536 |
| System Control Accuracy | ±0.2% of Full Scale |
| Power Requirements | 110 VAC, 60 Hz (220 VAC, 50 Hz Optional) |
| Dimensions | 51 in (H) × 28.5 in (W) × 26 in (D) |
| Weight | 300 lbs |
Why Choose APP’s Automated Hydraulic Pressure Control System?
APP is a name that many people know. A lot of people trust APP to give new tools for testing and checking pressure. Many use these tools at work or in the lab. They help people see if things are working well and are safe.
The APCS offers:
- The system works on its own.
- The system lets you pick the pressure that you need.
- It uses feedback from the encoder to help track things better.
- The system shows results that are easy to see and read.
- The system can work with many types of fluids.
- You can count on it to keep running for a long time.
- You can use it in places where automated testing is done.
These features make the APCS a good pick for groups who want the pressure to stay the same each time. It works well if you need things to stay steady and be set right each time you use it.
Conclusion
The Automated Pressure System (APCS) puts together power, moving parts in machines, and trust. It helps you make pressure in the way you want. You can set it how you like. The system has smart parts inside. It helps you see small changes. The system can work by itself, too. It lets engineers and people in research get good results in their tests. They can also watch what they do and feel good about their work.
The APCS is good for many jobs. You can use it to test pressure vessels. You can find leaks with this tool. The APCS helps you when making new things. It works well in research. You can check if things are good before they go out from the factory. This tool gives you what you need for hard tests now.
